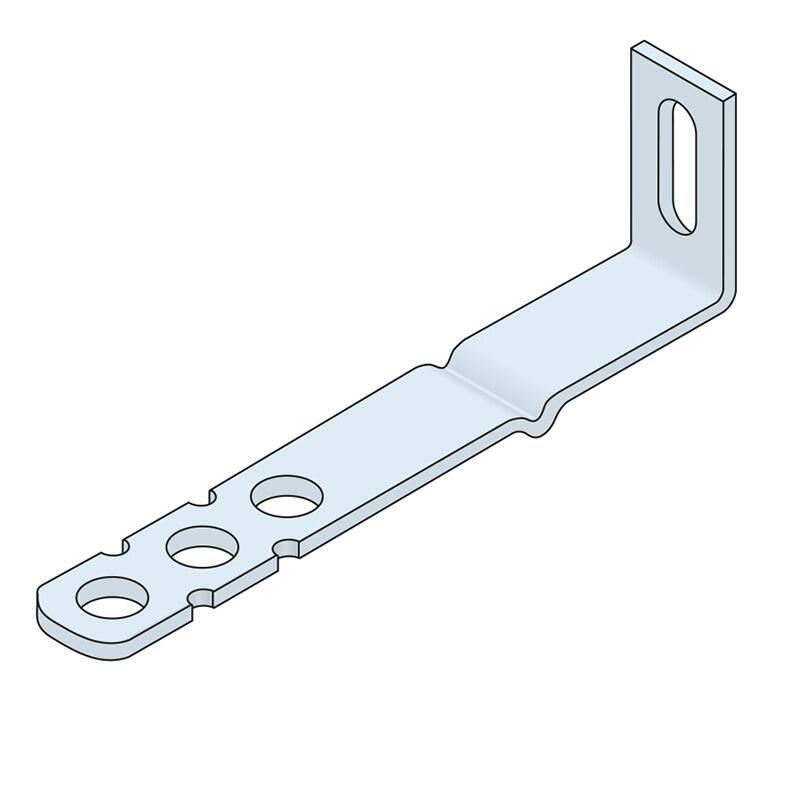

Ancon SDV 175mm Frame Tie With Slot and Drip - Box of 250 by Ancon - A Leviat Brand

The Ancon SDV 175mm Frame Tie with Slot and Drip offers lateral restraint between masonry and structural frames like steel or concrete. The 8 x 30mm slot allows for on-site adjustments, while the drip feature helps prevent water penetration across cavities. Designed for cavity widths of 100-125mm, it is made from stainless steel, ensuring excellent corrosion resistance. Supplied in a box of 250, this tie complies with BS EN 845-1 standards, making it suitable for both residential and commercial applications.

CODE ON THE BOX WDIN902106

Installation Instructions:

1. Ensure the drip is pointing downwards and the slot allows for adjustment during installation.
2. Position the drip centrally in the cavity to prevent water ingress.
3. Maintain a minimum embedment of 55mm into the outer masonry leaf.
4. Use M6 expansion bolts for concrete or self-drilling screws for steel frames.

Compliance & Certifications:

• UKCA and CE marked, the Ancon SDV 175mm Frame Tie complies with BS EN 845-1, ensuring its suitability for a wide range of building applications, offering both performance and durability.
