Ancon SDV 200mm Frame Tie With Slot and Drip - Box of 250 by Ancon - A Leviat Brand

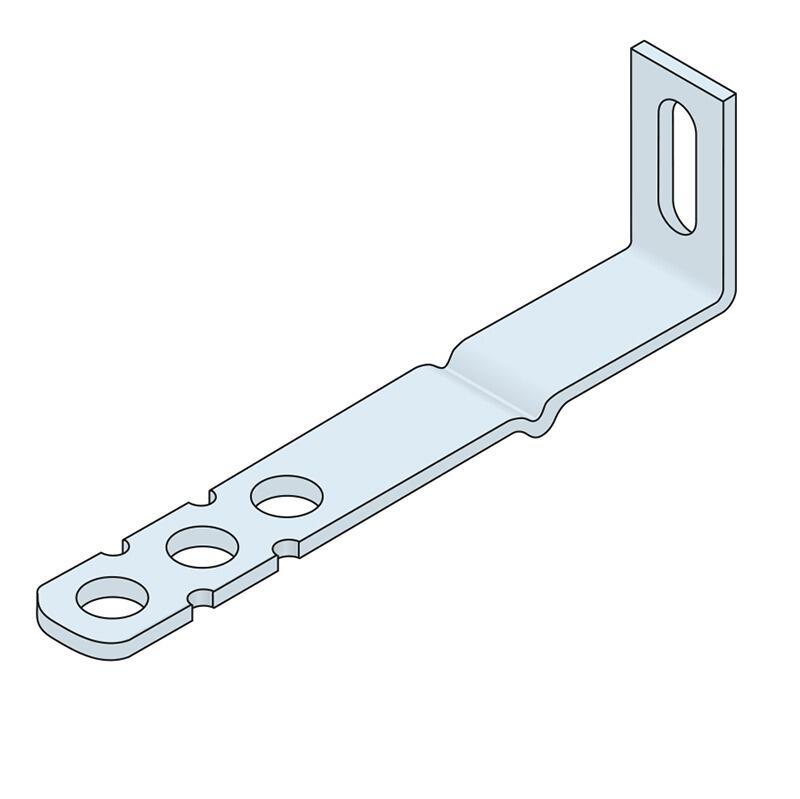

The Ancon SDV 200mm Frame Tie with Slot and Drip is designed to secure masonry to structural elements such as steel or concrete frames, with an 8 x 30mm slot that allows for flexibility in positioning. The drip feature prevents moisture from crossing the cavity, providing essential protection in cavity widths of 125-150mm. Manufactured from high-grade stainless steel, this tie offers corrosion resistance and is suitable for a wide range of projects. Each box contains 250 ties, and the product complies with BS EN 845-1 standards for wall ties.

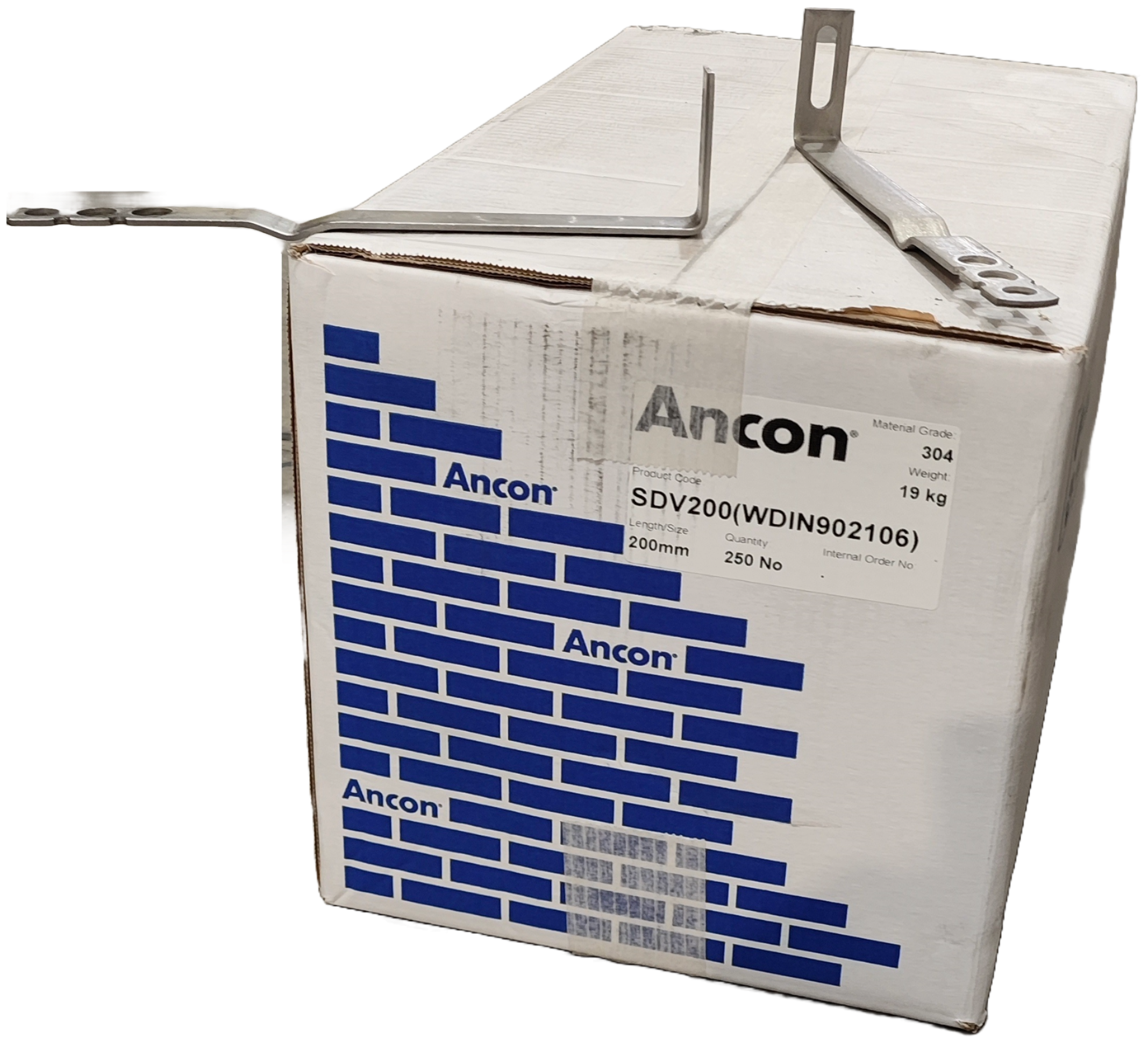

CODE ON BOX: WDIN902106

Installation Instructions:

1. Install with the drip facing downwards, and ensure the slot is positioned for adjustable alignment.
2. Place the drip centrally within the cavity to prevent moisture ingress.
3. Embed at least 55mm into the outer masonry leaf.
4. Secure using M6 expansion bolts for concrete or self-drilling screws for steel frameworks.

Compliance & Certifications:

The Ancon SDV 200mm Frame Tie meets UKCA and CE marking requirements and complies with BS EN 845-1 standards, ensuring suitability for residential and commercial applications.
