ARC Spandrel Barrier SPB100/100 120/100 x 25/200 x 1200mm (Bag of 12) by ARC Building Solutions

The ARC Spandrel Barrier SPB100/100 is designed to seal the top of party wall cavities, providing both fire resistance and thermal insulation. When used in conjunction with the ARC T-Barrier installed vertically, it enables the achievement of a zero U-value, effectively minimizing thermal bypass.

Key Features:

• Fire Integrity: Offers up to four hours of fire integrity around the edge of the party wall and up to one hour between the spandrel panel and blockwork.

• Thermal Performance: Contributes to achieving a zero U-value, enhancing the building's energy efficiency.

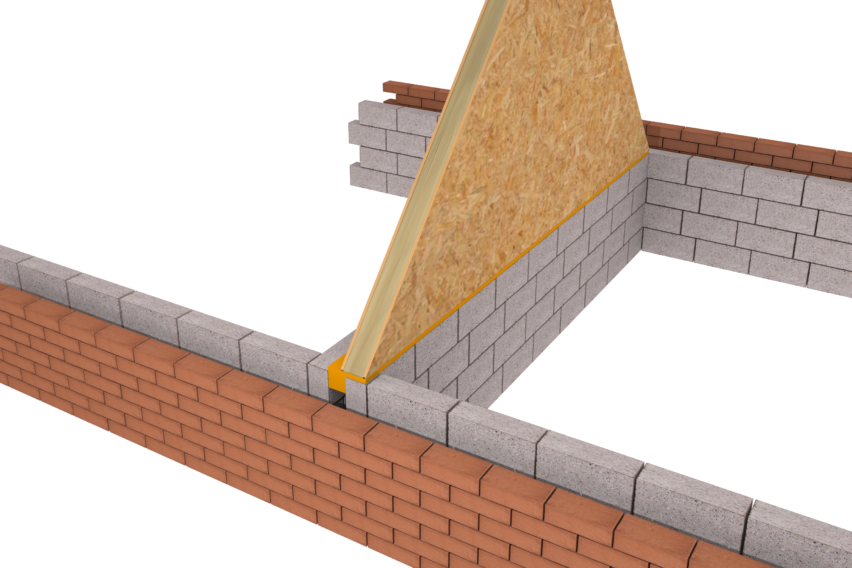

• Easy Installation: The barrier is compressed between the top of the party wall blockwork and the underside of the spandrel panel, creating an effective fire and thermal break.



Specifications:

• Product Code: SPB100/100

• Party Wall Cavity Width: 100 mm

• Block Width: 100 mm

• Dimensions: 120/100 x 25/200 x 1200 mm

• Pack Quantity: 12 barriers per bag

• Fire Rating: Up to four hours around the edge of the party wall; up to one hour between the spandrel panel and blockwork



The ARC Spandrel Barrier is manufactured using rockfibre mineral wool, achieving a fire classification of Euroclass A1 as defined in BS EN 13501-1. This material has a thermal conductivity of 0.037 W/mK, contributing to its thermal performance.

For optimal performance, it is recommended to use this barrier in conjunction with the ARC T-Barrier installed vertically, ensuring a comprehensive seal around the party wall cavity.
