Choosing the Right Wall Tie: A Comprehensive Comparison of Types 1–4
When planning or carrying out any masonry build, one of the most important decisions you will face is how to choose the right wall tie. Selecting a tie that matches the structural, thermal, and environmental demands of your project can help ensure stability, protect against damp, and prevent costly remedial work down the line. Different building types, heights, and exposures often require a specific tie classification according to British and European standards.
In this article, you will learn about the four primary wall tie Types—1, 2, 3, and 4—along with the unique features and common applications of each. We will also consider how environmental exposure, building height, and regulatory compliance drive the selection process. If you are looking for a broader overview of wall ties, including their purpose and best installation practices, you may find it helpful to consult our main hub article, The Ultimate Guide to Wall Ties which provides a detailed foundation on this essential construction component.
By understanding how Types 1–4 differ, you can make informed choices that align with UK Building Regulations and ensure your build remains structurally sound and energy efficient. At Spechunter, we carry a wide range of wall ties suitable for everything from low-rise residential properties to tall commercial structures. Whether you need a low thermal conductivity tie to meet strict energy targets or a high-strength tie for a wind-exposed location, you will find multiple options from trusted manufacturers.
1. Overview of the Wall Tie Classification System

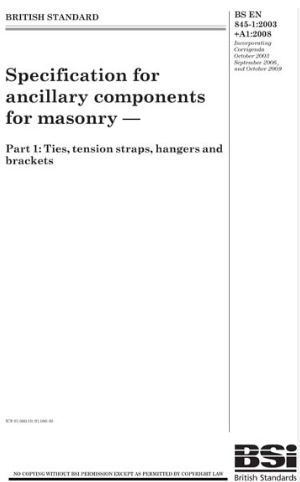

The classification system for wall ties is based predominantly on British and European standards, particularly BS EN 845-1. This standard sets out performance and testing requirements for masonry ancillary components, including tensile strength, durability, and corrosion resistance. Ties are categorised into Types 1, 2, 3, and 4, each reflecting distinct performance capabilities and typical use cases. When comparing these Types, you will often consider factors such as:
• The height of the building, since taller buildings experience greater wind loads.
• The location’s wind exposure rating. Coastal or hilly areas with high winds have more stringent requirements than sheltered inland sites.
• The design or layout of the structure, which may include cavity width, the presence of additional insulation, or a specific architectural feature like curved walls.
Project engineers and specifiers often reference manufacturers’ data sheets to confirm that a given wall tie meets the design’s load-bearing requirements and addresses local site conditions. Ties must be installed in accordance with the recommended spacing, embedment depth, and orientation to comply with Approved Document A of the Building Regulations, alongside any relevant NHBC or project-specific standards.

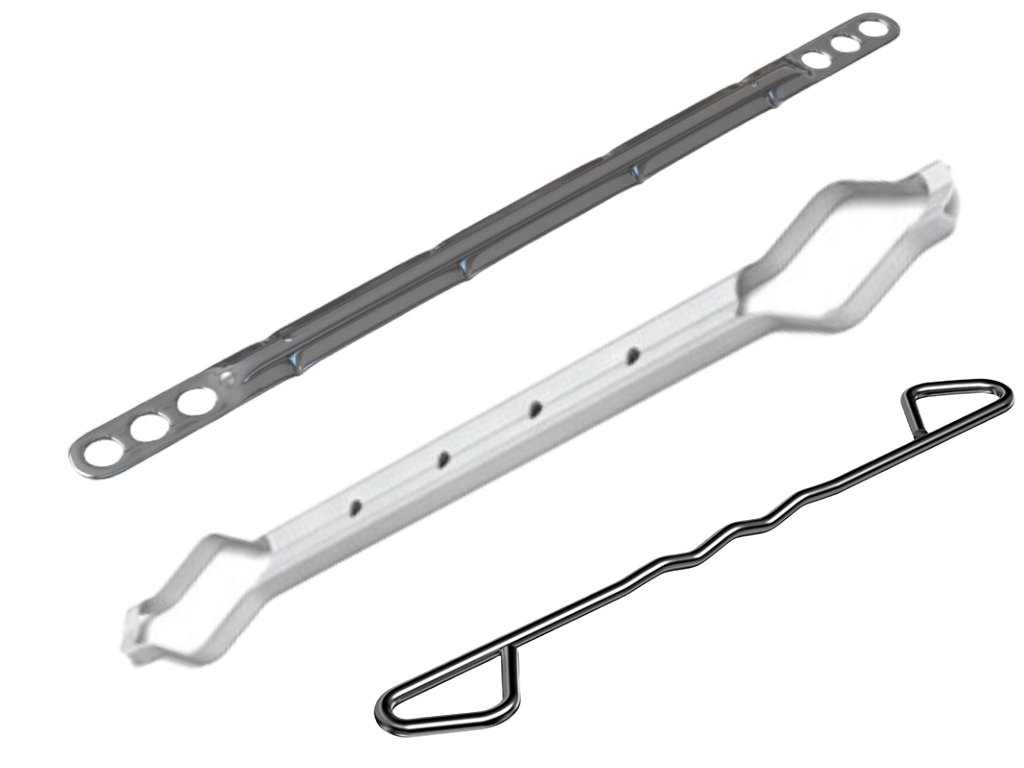

2. Type 1 Wall Ties: High-Strength Solutions for Challenging Conditions
Type 1 wall ties are the strongest and most robust category, designed to handle the highest wind loads, the tallest buildings, and other challenging scenarios. If you are constructing in an area with severe weather exposure or you are building a high-rise, Type 1 ties can be essential.
These ties often have a heavier gauge of stainless steel compared to other types, providing the tensile strength and rigidity necessary to bridge large cavities and withstand strong lateral forces. The extra material and design complexity can make Type 1 ties slightly more expensive, but they are indispensable where structural integrity takes top priority.
Projects that typically rely on Type 1 ties include tall apartment blocks, commercial or public structures in coastal areas with high wind gusts, and certain industrial buildings requiring maximum stability. Although these ties are more demanding in terms of material, if your build calls for a top-tier structural solution, it is worth ensuring you meet these higher strength requirements.
Installing Type 1 ties follows many of the same best practices as other ties: the proper embedment in both leaves of masonry, careful attention to drip points, and minimal bending or distortion. If you are curious about how the broader principles of installation apply to all tie varieties, our hub article on wall ties addresses this in more detail.

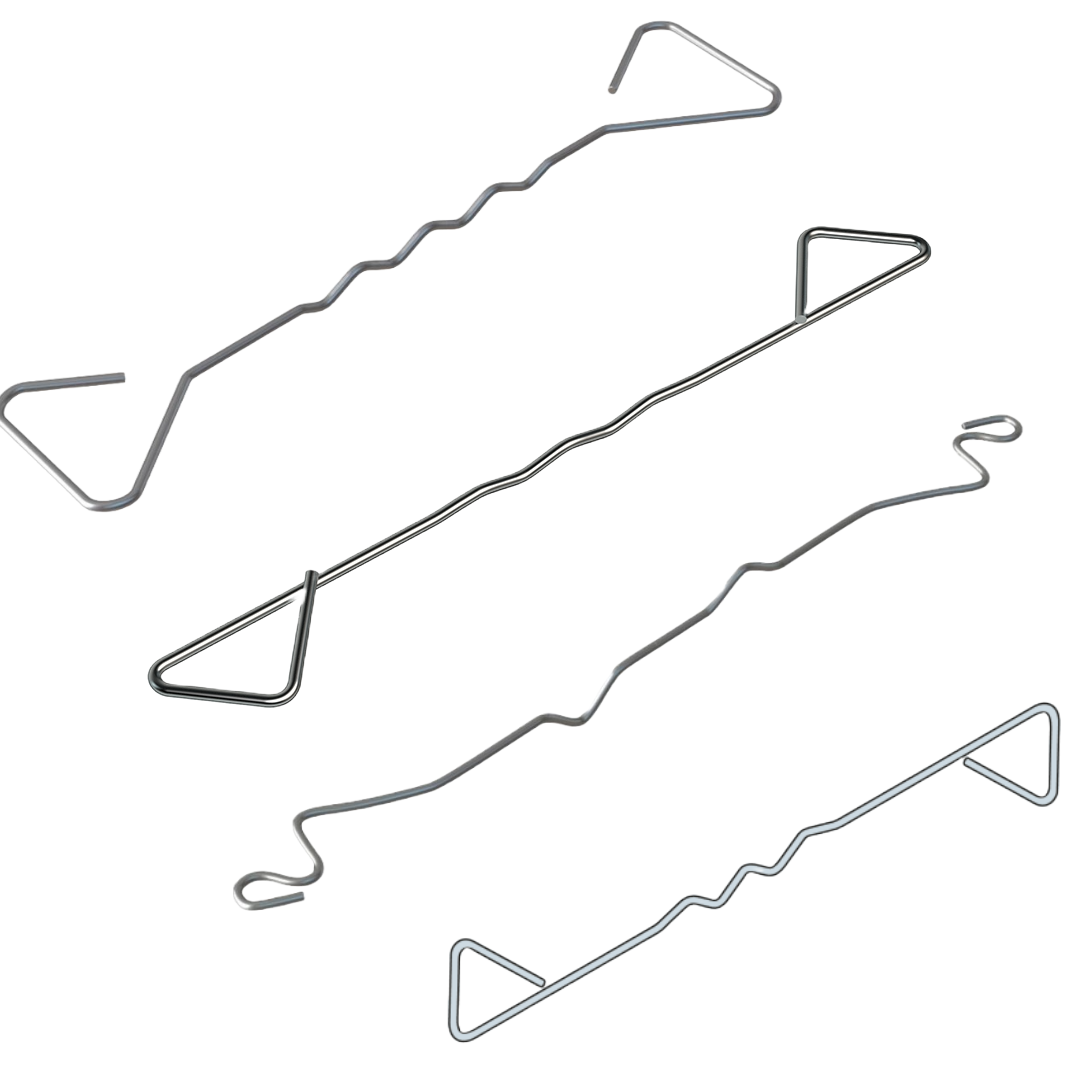

3. Type 2 Wall Ties: The Go-To Choice for General Housing and Moderate Exposure
Type 2 wall ties are frequently used in typical housing developments and other structures where wind and height conditions are considered moderate. Many standard properties in suburban or semi-urban settings fall into this category, making Type 2 ties a popular and widely stocked option.
These ties have sufficient strength for buildings up to a certain height, which can vary depending on the exact specification and local wind exposure data. They strike a balance between robust performance and cost-effectiveness. This makes them a default choice for many architects and site managers tasked with constructing traditional two- or three-storey homes.
Although Type 2 ties are considered an industry standard, they still require the same careful treatment during installation. Spacing often aligns with recommended guidelines, including increased density near openings such as windows and doors. The drip feature, or a special indentation in the centre of each tie, must remain clear to prevent water transferring from the outer leaf to the inner leaf.
In some cases, Type 2 may overlap with Type 3 in borderline scenarios. If you are building a property that sits on a particularly windy ridge but remains relatively low-rise, a stronger tie might be a safer choice. Conversely, if your property is in a sheltered area, you may opt for a slightly different classification after consulting engineering advice.

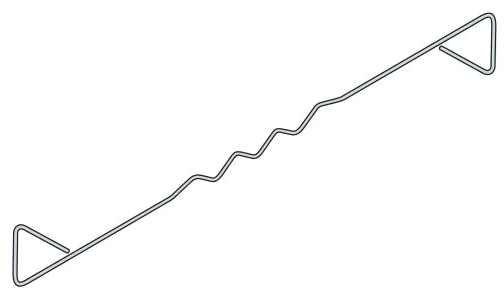

4. Type 3 Wall Ties: Lightweight Alternatives for Sheltered Locations
Moving on from the robust applications of Type 2 ties, Type 3 wall ties are designed for less demanding conditions, usually in sheltered or less exposed regions. They can often be selected for standard housing that is not subject to high wind speeds or severe weather conditions. Although they are sometimes grouped near Type 2 ties, there is a notable difference in their rated performance levels.
If you are constructing in a relatively calm inland area, Type 3 ties may suffice, providing a reliable and cost-effective way to ensure proper structural bonding of cavity walls without the extra expense of heavier duty alternatives. Many self-build projects and smaller residential developments in moderate climates might favour Type 3 ties for this reason.
Nevertheless, care must be taken not to over-specify Type 3 ties in conditions where Type 2 is warranted. Overestimation can lead to future problems such as wall movement, cracking, or, in extreme cases, structural failure. Ensuring accurate wind and load calculations is vital before making a final decision.

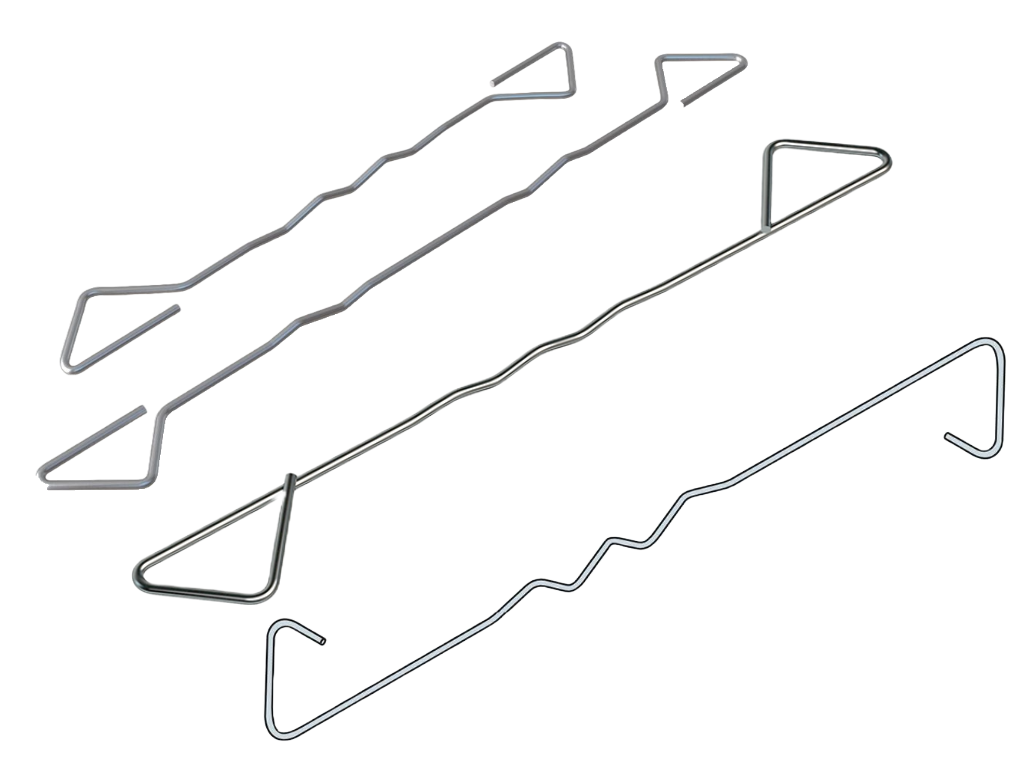

5. Type 4 Wall Ties: General Purpose Housing Ties for Minimal Load Scenarios and Low-Rise Buildings
Type 4 wall ties sit at the lighter end of the spectrum. They are often chosen for single-storey or low-rise projects where wind loads and structural stresses are minimal. You might find Type 4 ties in use for simple garden walls, bungalows, or extensions that do not surpass one or two storeys.
In many ways, Type 4 ties are less robust versions of their counterparts, focusing on the basics of stability in builds with limited exposure. Although their strength is comparatively lower, this does not mean they are substandard. They are simply designed for an environment where heavy gusts or high-rise forces are unlikely. Provided they are placed correctly and used in the right context, Type 4 ties will still deliver reliable performance.
Most type 4 ties also generally carry a Type A sound testing which is important when choosing a party wall wall tie.
Specifiers should be aware that pushing a Type 4 tie beyond its intended scope—such as using it on taller or more exposed sites—runs the risk of future problems. As with any building component, ensuring that the classification aligns with your site-specific conditions is essential.
6. Selecting the Right Type for Your Project
Choosing the right wall tie is not always as straightforward as simply matching a building height to a tie type. Many projects involve unique factors that influence wall tie selection. Site conditions can vary widely, from remote coastal areas with strong winds to city centres surrounded by high-rise developments that shield each other from the worst weather.
Local ground conditions and building designs can also play a part. If your project incorporates wider-than-average cavities or unusual shapes, you may need a tie designed with a longer shank or custom drip features. Similarly, if your building layout features large window openings, you might need to increase your wall tie density around these to distribute loads properly.
By working with engineering professionals, you can outline the specific performance criteria and interpret the relevant guidance in Approved Document A or other statutory documents. If you need further information on advanced tie varieties, such as movement ties or those with minimal heat transfer, Spechunter’s spoke articles offer additional depth on specialised topics.
7. Performance Beyond Structural Integrity
While strength and stability are essential when classifying wall ties, modern ties often feature design enhancements that improve thermal efficiency and moisture management. Features such as low thermal conductivity are especially valuable in achieving stricter energy targets. If you want to discover more about how these ties reduce cold bridging and improve SAP calculations, you can refer to our spoke article, “Low Thermal Conductivity Ties: Maximising Energy Efficiency in Modern Construction.”
Ties that incorporate drip points, corrugations, or channels can better manage moisture by ensuring water drains outwards rather than migrating to the interior leaf. Corrosion resistance is crucial, too. Galvanised steel ties used to be common, but many older properties suffer from rusting if the galvanised layer was compromised. Stainless steel ties, which are now the norm, largely circumvent this issue. Whenever possible, look for ties that have a reputable manufacturer behind them and evidence of compliance with British standards. Certifications such as CE marking and UKCA marking, along with adherence to BS EN 845-1, provide an extra layer of assurance.
8. Installation and Spacing Guidelines

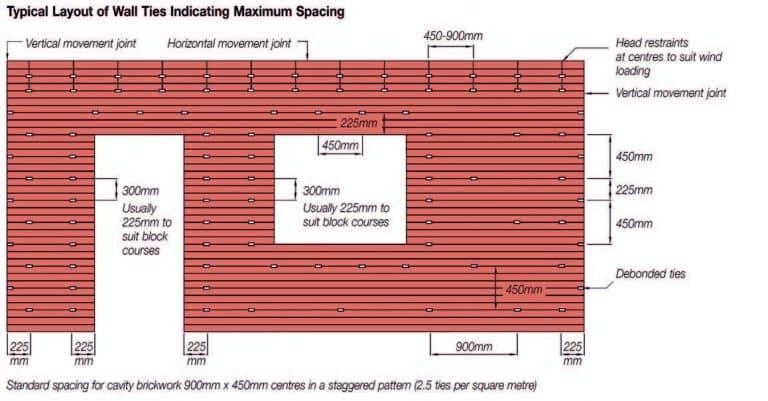

Installation for all tie types follows a broadly similar set of guidelines, but you must confirm the specifics for your chosen product. The standard practice is to place ties at a regular horizontal and vertical spacing, such as 450 mm vertically and 900 mm horizontally, though it may be 225 mm around window and door openings. These densities vary depending on the type and local regulations, so double-check each manufacturer’s documentation and project requirements.
The recommended embedment of the tie ends into mortar is often between 50 mm and 75 mm, but different Type classifications sometimes have bespoke stipulations. Ensuring that the ties have a slight outward pitch towards the external leaf also helps with drainage if moisture accumulates on the metal. The drip feature in the centre of the tie should lie free in the cavity air space, not buried in mortar.
If you would like a more detailed look at how to avoid installation pitfalls, consult our hub article on wall ties, which explains common mistakes and how to circumvent them. Many of these errors, such as burying drip points or bending ties excessively, are easy to avoid once you understand best practices.
9. Verifying Compliance and Quality
Prior to ordering your ties, confirm that they have been tested and certified under the necessary standards for your region. In addition to BS EN 845-1, you may see references to tests measuring performance against lateral loads and durability. Ties from established brands typically come with data sheets showing characteristic tensile and compressive strengths, as well as recommended cavity widths.
It can be helpful to consult with your building control officer, the National House-Building Council (NHBC), or any other relevant approval bodies to ensure that your chosen tie Type meets building obligations. In certain circumstances—such as if you have a novel building design—you might also discuss your selection with structural engineers, who can calculate the wind load or dynamic load your building is likely to experience.
If you are replacing ties or upgrading existing masonry, perform a thorough site inspection. Older galvanised ties in particular can corrode and fail, which often leads to horizontal cracks along mortar lines or bulging walls. Correctly installing a more appropriate stainless steel tie can help address these problems without requiring a complete wall rebuild.
10. Integration with Other Wall Components

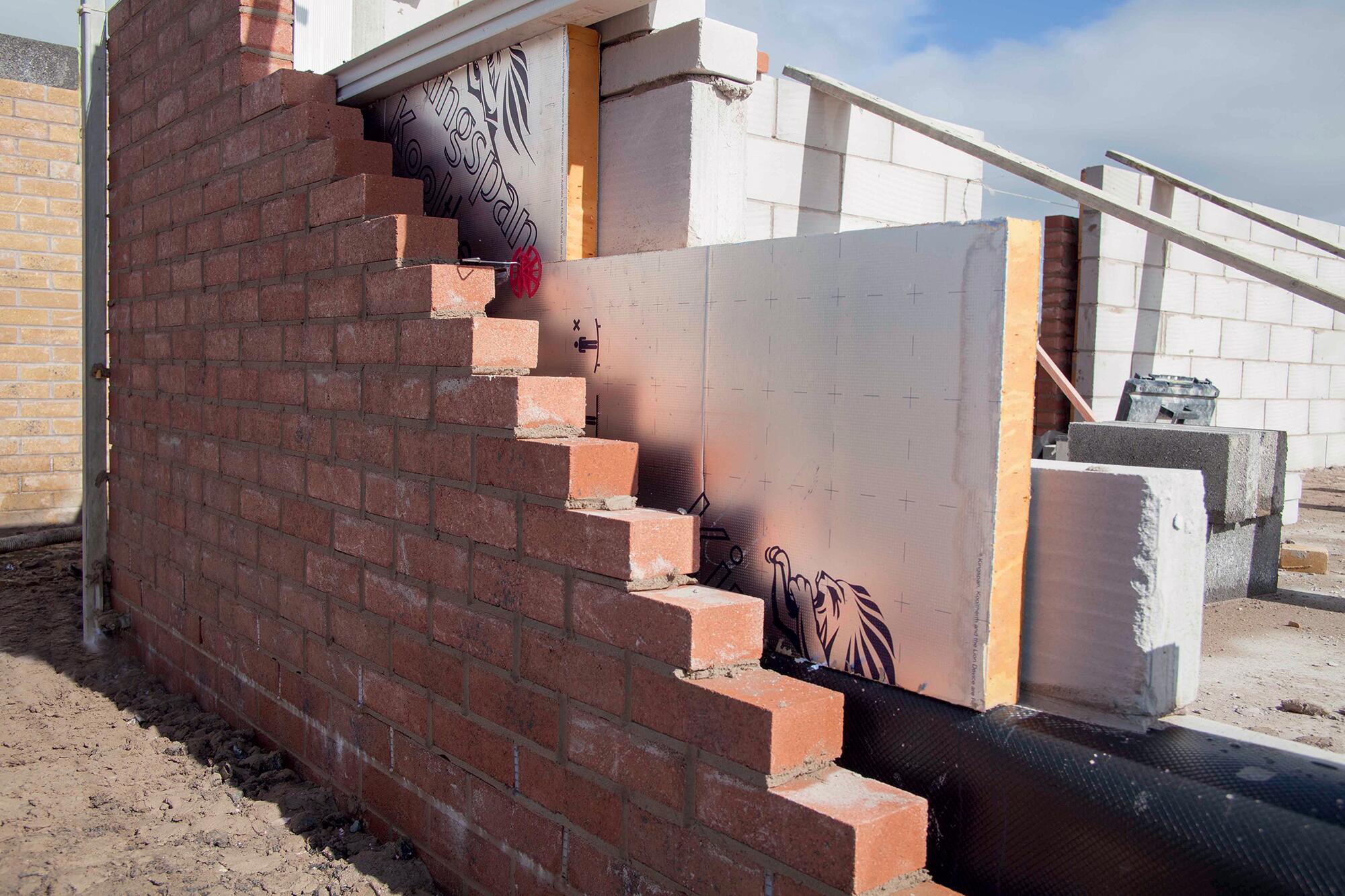

While the primary goal of wall ties is to provide structural strength, they often interact closely with other building materials. For instance, insulation boards in the cavity need to fit neatly around the ties without crushing them or shifting drip features. Non-combustible weep holes or fire socks may also come into play for specific safety regulations, especially in multi-storey buildings where preventing fire spread is paramount. If fire safety is a concern, you may want to read our “Fire Socks & Barriers 101” hub for more insights on integrating those components effectively.
Moisture management is another crucial area. If the drip points on the ties are not installed correctly, or if mortar droppings fill the cavity, moisture can travel across the tie into the inner leaf. This can lead to damp patches or mould. A reliable damp proof course (DPC), coupled with efficient weep holes, aids in channelling water safely out of the wall assembly. If you want to learn more about these protective measures, our DPC hub article provides a comprehensive look at preventing damp in masonry.
11. Where to Go for More Information and Products
Whether you are planning a modest extension or tackling a major commercial project, choosing the right wall tie is a crucial part of creating a stable, safe, and long-lasting structure. If you need a high-strength option, Type 1 ties will provide peace of mind. For a more standard housing development, Type 2 or Type 3 may be sufficient, while Type 4 might be the most suitable for low-rise or sheltered environments.

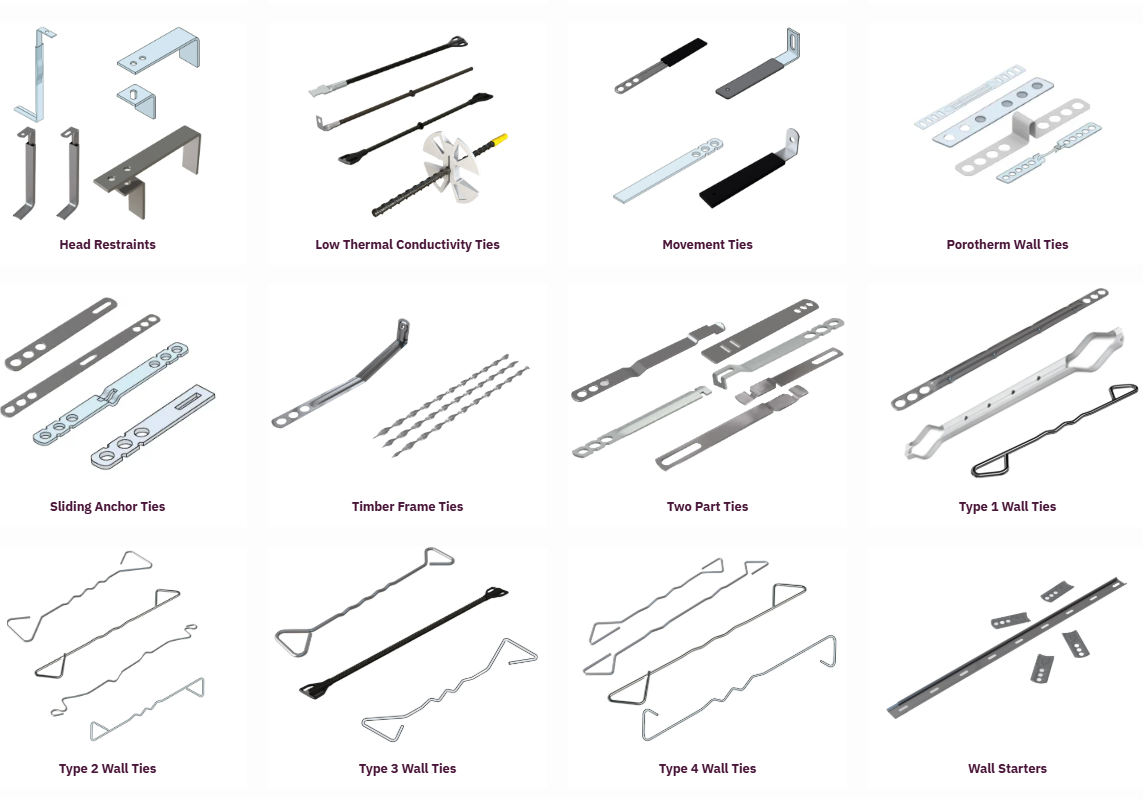

Spechunter offers an extensive range of wall ties and accessories, including low thermal conductivity options, special movement ties, and timber frame ties. Our stock includes products from leading manufacturers like Ancon, ARC, and other trusted names in the construction industry. For detailed specifications, guidance on how many ties to use per square metre of wall, or help choosing the right Type, you can reach out to our technical team.
If you have not already, you may also want to browse our main Wall Ties product category to see what is available and request an immediate quote. We provide next working day delivery on many of our items if you place your order before midday, helping you maintain momentum on your project.
The Bottom Line
Choosing the right wall tie is fundamental to ensuring that a building remains secure and watertight, while also meeting statutory regulations and performance criteria. Knowing how each tie Type—1, 2, 3, or 4—differs in terms of strength and intended use will help you narrow down the options that best align with your site conditions, building height, and wind exposure rating.
By selecting a tie that offers the correct level of structural capacity, corrosion resistance, and thermal efficiency, you are setting the stage for an effective, long-lasting building envelope. If you are uncertain or want to double-check that you have the right tie specification, you can always consult with the Spechunter team. Our specialists are well versed in the technical requirements of wall ties and can guide you towards a solution that meets both building regulations and your project’s timeline. For more insights, remember to explore our other spoke articles and revisit our wall ties hub if you wish to refresh your knowledge on proper installation, movement tie requirements, or advanced design features such as low thermal conductivity.
