Concealed Weep Holes vs. Traditional Weep Holes: Which Is Best for Your Project?

When adding weep holes to cavity walls, one of the first choices you will make is whether to opt for traditional open vents or more discreet concealed designs. While all weep holes serve the same fundamental function—letting water escape to prevent moisture build-up within the cavity—there are nuanced differences in appearance, cost, ease of installation, and long-term performance. Understanding these distinctions will help you select the best approach for your building’s needs, whether you are working on a residential façade, a commercial complex, or a listed heritage structure where aesthetics are paramount.

This spoke article explores how concealed and traditional weep holes compare, examining their benefits and drawbacks. If you need a broader understanding of why weep holes matter, you might find it helpful to read our main hub piece—A Complete Guide to Weep Holes—or our introductory spoke, Why Weep Holes Matter: Preventing Moisture Build-Up in Masonry Walls. Once you grasp the importance of drainage in cavity construction, the discussion below will help you refine your choice based on design priorities, installation preferences, and budget considerations.

1. Overview of Traditional Weep Holes

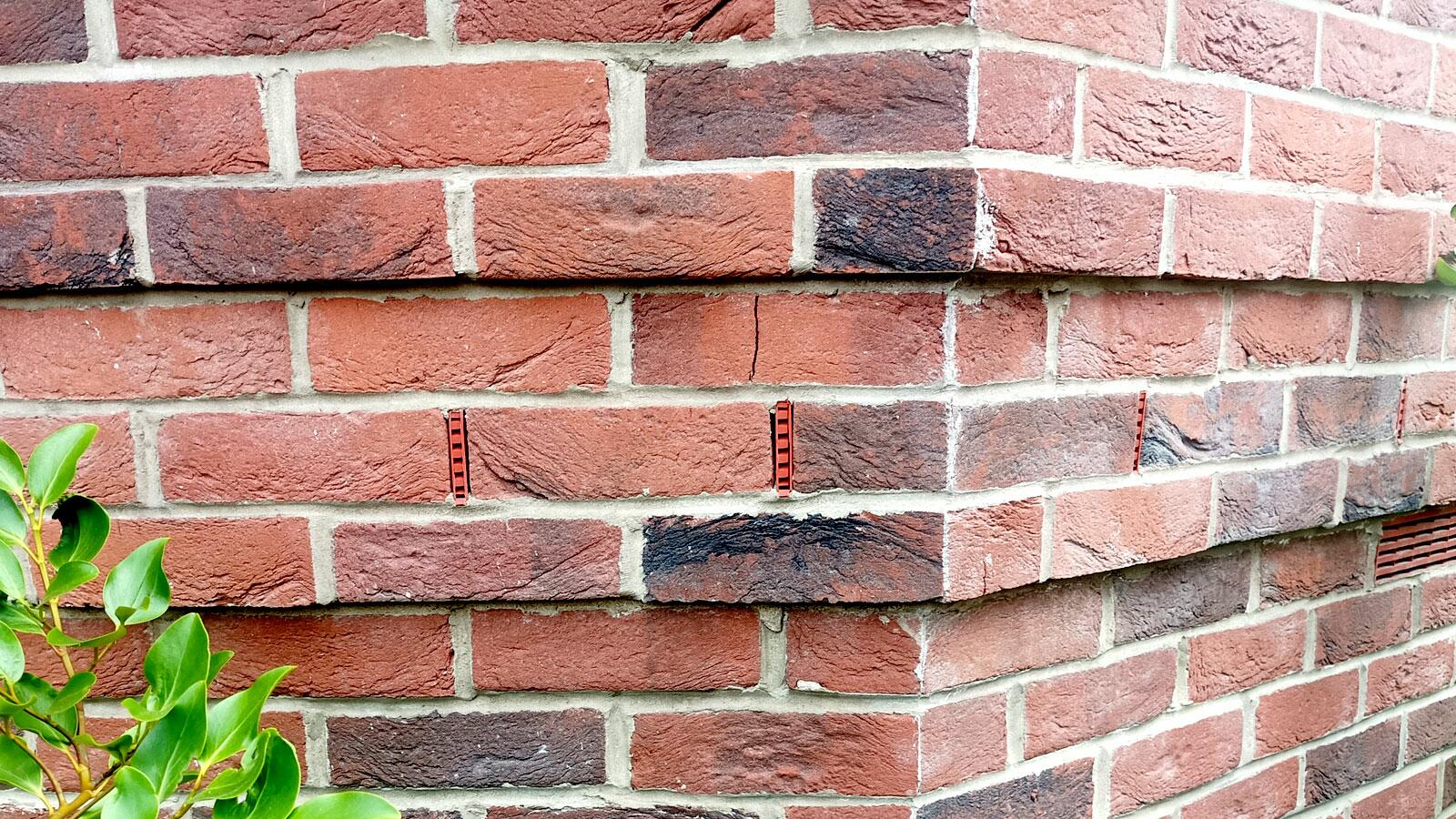

Traditional weep holes often take the form of small open slots left in the mortar joints, or they may involve pre-moulded plastic vents that fit into these joints. In practice, many builders simply leave out the mortar in one vertical joint (sometimes referred to as “weeping perps”), spacing these openings at regular intervals above cavity trays or at the base of the wall. Alternatively, plastic or metal vents can be inserted to keep the opening clear and prevent blockages.

Advantages of Traditional Weep Holes

1. Simplicity
   Leaving out a short vertical section of mortar or inserting a pre-made plastic vent is a straightforward process, widely understood by builders.

2. Low Cost
   Traditional solutions (particularly open perp joints) are typically cheaper than concealed products, making them popular for larger-scale developments where budget control is critical.

3. Easy Inspection
   Because these holes are visibly open, it is simpler to confirm that they are unclogged or free of mortar droppings. Quick visual checks ensure ongoing functionality.

4. Wide Availability
   Pre-moulded vents or open joint details are widely available, meaning there is little difficulty sourcing them on short notice.

Drawbacks of Traditional Weep Holes

1. Aesthetic Impact
   The open slits or plastic vents can be noticeable, particularly in high-end or design-sensitive façades, where uniform brickwork is a priority.

2. Potential Clogging
   While vents help reduce blockages, some smaller designs may still be prone to mortar droppings, insects, or debris filling the opening over time.

3. Less Discreet in Heritage Projects
   For listed buildings or historical restorations, visible plastic vents may clash with the period aesthetic. Some local authorities may prefer concealed weep solutions to preserve the façade.

2. Overview of Concealed Weep Holes

Concealed weep holes aim to provide the same drainage function without creating a visibly open slot on the external face. Many such designs feature an internal channel or an angled insert that directs water out through a discreet seam or tiny external aperture. As a result, the weep hole does not disrupt the brick layout, joint lines, or overall façade appearance.

Advantages of Concealed Weep Holes

1. Enhanced Aesthetics
   Concealed designs can blend seamlessly with the masonry, making them ideal for high-profile projects or heritage buildings where uniformity is key.

2. Reduced Visibility
   When properly installed, the external hole is barely noticeable—particularly if colour-matched to the mortar or hidden in a mortar joint.

3. Protected from Debris
   Many concealed systems use an internal channel or protective barrier that minimises the chance of mortar droppings or insects completely blocking the path.

4. Heritage and Planning Approval
   In contexts with strict design controls—such as conservation areas—concealed weep holes can help meet local authority requirements for minimal visual impact.

Drawbacks of Concealed Weep Holes

1. Higher Cost
   Concealed weep hole systems often involve more advanced moulding or materials, raising the unit price.

2. More Complex Installation
   Builders unfamiliar with these products may require a learning curve, ensuring that the channel aligns properly with the cavity tray and that no bridging occurs.

3. Less Straightforward Inspection
   Because they are less obvious, verifying that each concealed channel remains free from blockages or mortar droppings can be trickier during construction and post-build checks.

4. Availability and Lead Times
   While increasing in popularity, some concealed systems may not be as widely stocked in local merchants. Planning orders and deliveries in advance is crucial.

3. Key Factors in Choosing Between Concealed and Traditional Weep Holes

3.1 Aesthetic Considerations

For projects where external brickwork or stone cladding must remain pristine, concealed weep holes are an attractive option. They remove the visual distraction of plastic vents or open slots. Conversely, if the building design already employs visible perp vents or if cost constraints are severe, the standard open approach might suffice.

3.2 Cost and Budget

Open perp joints or basic plastic vents are generally cheaper than concealed systems, both in material price and (typically) in labour. For large developments with dozens or hundreds of weep holes, this difference can add up. The decision often hinges on whether the client or architect prioritises minimal visual impact over cost savings.

3.3 Installation Expertise

Traditional weep holes are familiar to most bricklayers, leading to fewer mistakes. Concealed systems may require more precise placement, correct orientation, and possibly manufacturer-specific training or instructions. If your site team has experience with concealed vents, the transition might be smoother.

3.4 Maintenance and Inspection

Both designs aim to let water out while keeping debris out, but how easily you can check or clean them varies. Traditional vents are easier to see but can also accumulate mortar droppings if not protected during construction. Concealed weep channels may be more shielded from mortar but can be challenging to inspect if performance issues arise.

3.5 Regulatory or Heritage Requirements

In listed or conservation settings, planning officers might insist on minimal external alterations. Concealed weep holes are more likely to gain approval if external changes to the façade need to remain visually imperceptible. Standard open vents, although functional, can be an eyesore in such contexts.

4. Examples and Common Products

Several manufacturers produce both traditional and concealed weep hole solutions:

• Traditional Vents

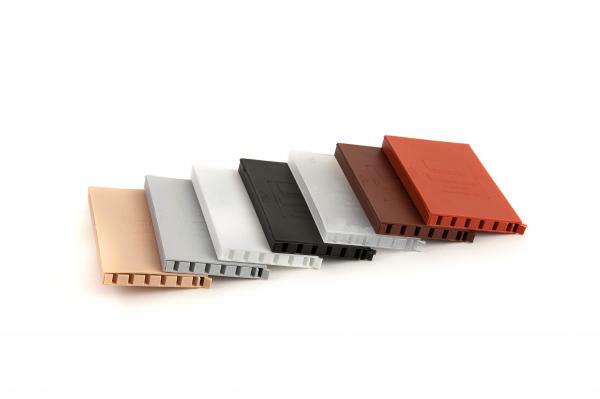

  Commonly plastic inserts that slide into the perp joint, featuring a slotted opening or grille. They come in multiple colours to blend with typical mortar or brick tones (e.g., terracotta red, brown, grey). Some also include small barbs to anchor in the mortar.

• Concealed Systems

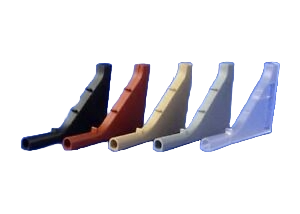

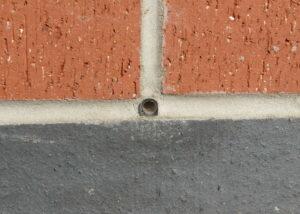

  Usually a multi-piece design that channels water internally, with an exit aperture flush to the brick face or hidden under a mortar lip. They might incorporate a mesh or narrow opening to block insects. These often cost more but can be nearly invisible once installed.

Beyond the basic geometry, specialised variants exist—for example, non-combustible metal vents designed for high-rise projects or advanced solutions with integrated drip features that further reduce the risk of bridging.

5. Installation Tips for Both Types

Regardless of whether you choose open or concealed vents, a few general rules promote effective drainage:

1. Position Above Cavity Trays
   Weep holes function best when aligned with any horizontal tray or DPC, allowing water to flow directly out at the lowest point.

2. Maintain Correct Spacing
   Typical guidelines suggest weeps at 450 mm intervals above lintels or cavity trays, ensuring swift drainage without letting water pool.

3. Angle or Slope Outward
   For plastic vents, a slight downward pitch ensures water runs out rather than collecting in the vent. Concealed systems generally have an internal slope built in.

4. Protect During Mortar Work
   Especially for open vents, use temporary covers or carefully place them after the mortar joint is partially set, avoiding accidental clogging.

5. Check Clearance from Ground
   Weep holes near the base of the wall should sit at least 150 mm above external ground level to avoid blockage from soil or paving.

6. Coordinate with Other Elements
   If installing fire cavity barriers, non-combustible DPC, or insulation boards in the same area, ensure the chosen weep hole does not conflict with these elements and that bridging is avoided.

6. Potential Pitfalls to Watch Out For

• Over-Reliance on Concealed Designs
  If installers are not well-versed in concealed vents, they might misalign the channel, rendering drainage ineffective. A higher level of quality control is crucial.

• Matching Product to Environment
  In highly exposed, windy conditions, a small concealed outlet might clog more easily with blown debris. Traditional vents with a larger external opening can sometimes cope better with high wind-driven rain.

• Ignoring Brand-Specific Guidance
  If using a proprietary concealed system, always follow the manufacturer’s instructions on spacing, orientation, and mortar application. Skipping these details can undermine performance.

• Cost-Savings vs. Aesthetics
  In an attempt to save money, some projects use open perp joints in highly visible façades, only to regret the aesthetic compromise later. Clarifying priorities with the client helps avoid dissatisfaction.

7. Choosing the Right Approach for Your Project

Ultimately, the decision between concealed and traditional weep holes comes down to balancing aesthetics, cost, familiarity, and long-term functionality. Consider these guidelines:

• Architectural Prominence
  For prestigious or heritage builds, concealed weeps often prove worthwhile for preserving uniform brick coursing or period charm.

• Tight Budgets, Large Scales
  Big developments with limited funds may prefer the straightforward economy of open perp weeps or simple plastic vents.

• Site Team Experience
  If your bricklayers or subcontractors are experienced with a particular method, that can reduce errors and speed up completion.

• Fire Safety Considerations
  In higher-risk buildings, check whether a non-combustible variant is mandated. Some concealed solutions may also be available in metal, bridging the gap between aesthetic needs and fire codes.

• Clogging Risks
  If the site is prone to high winds, dust, or insect activity, choose a vent design (whether open or concealed) with featu
