Full-Height Weep Holes: Benefits and Common Applications

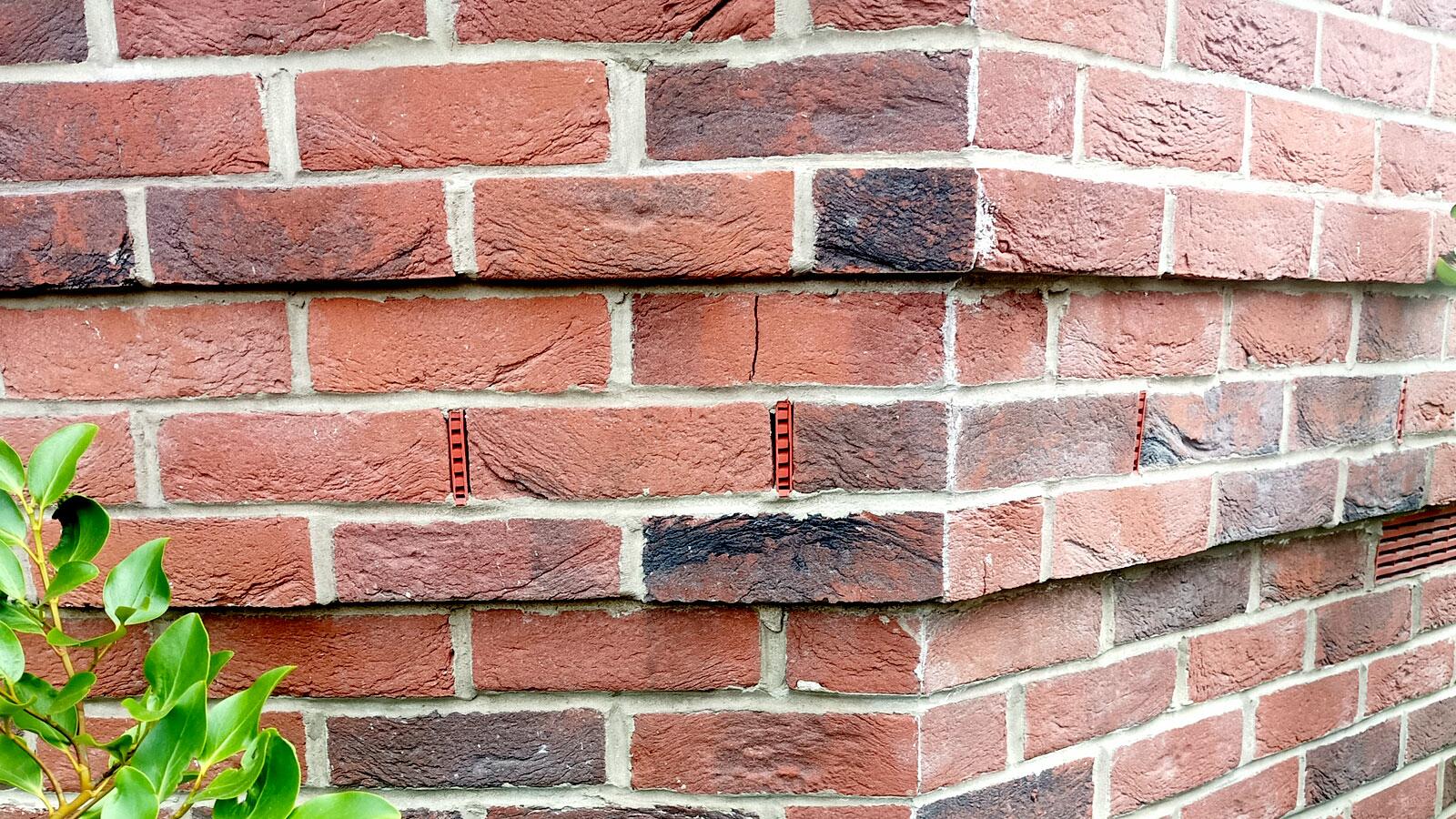

A standard weep hole usually appears as a short opening or vent at a single course in the masonry, allowing water to exit at specific tray or DPC levels. However, certain walls—particularly in taller or more exposed applications—may benefit from full-height weep holes. These extended channels run from a lower point in the cavity up through multiple courses or a larger vertical span, offering a more robust path for water to drain. In the right scenarios, this design can significantly reduce damp risks, improve ventilation, and offer extra capacity for discharging moisture during heavy or prolonged rainfall events.

This spoke article delves into what full-height weep holes are, why they matter in certain builds, and how you can install them for maximum efficacy. If you are unfamiliar with basic weep hole concepts—such as standard spacing, typical placements above cavity trays, and the importance of drainage in cavity walls—consider reading our main hub, A Complete Guide to Weep Holes, for an overview. Once you have the fundamentals, the details below will clarify when and why you might opt for a full-height solution, highlighting both best practices and cautionary points.

1. Defining Full-Height Weep Holes

Full-height weep holes are designed to span a taller portion of the wall, rather than just a single course or discrete opening in the mortar joint. They might extend two or more courses high or include an extended channel that allows water—or even air—to exit from deeper within the cavity. While often still placed at or above a cavity tray or DPC line, they are recognisable by their elongated vertical aperture and increased capacity.

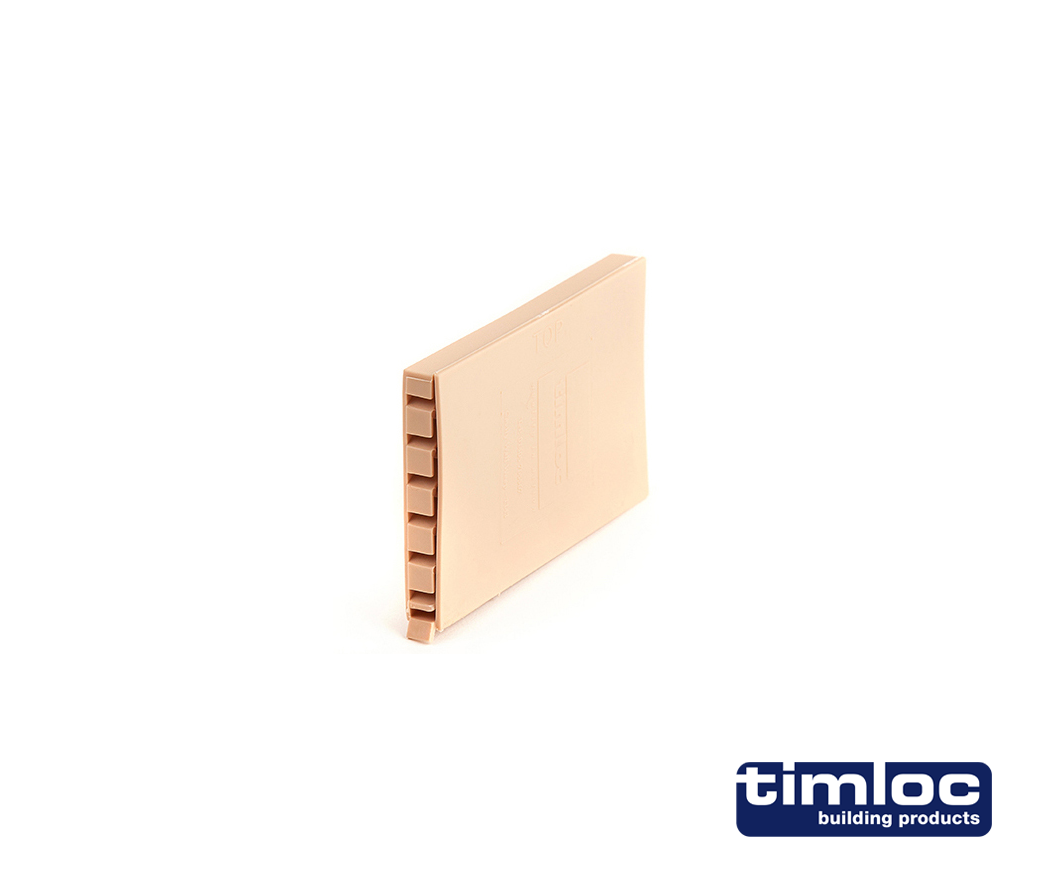

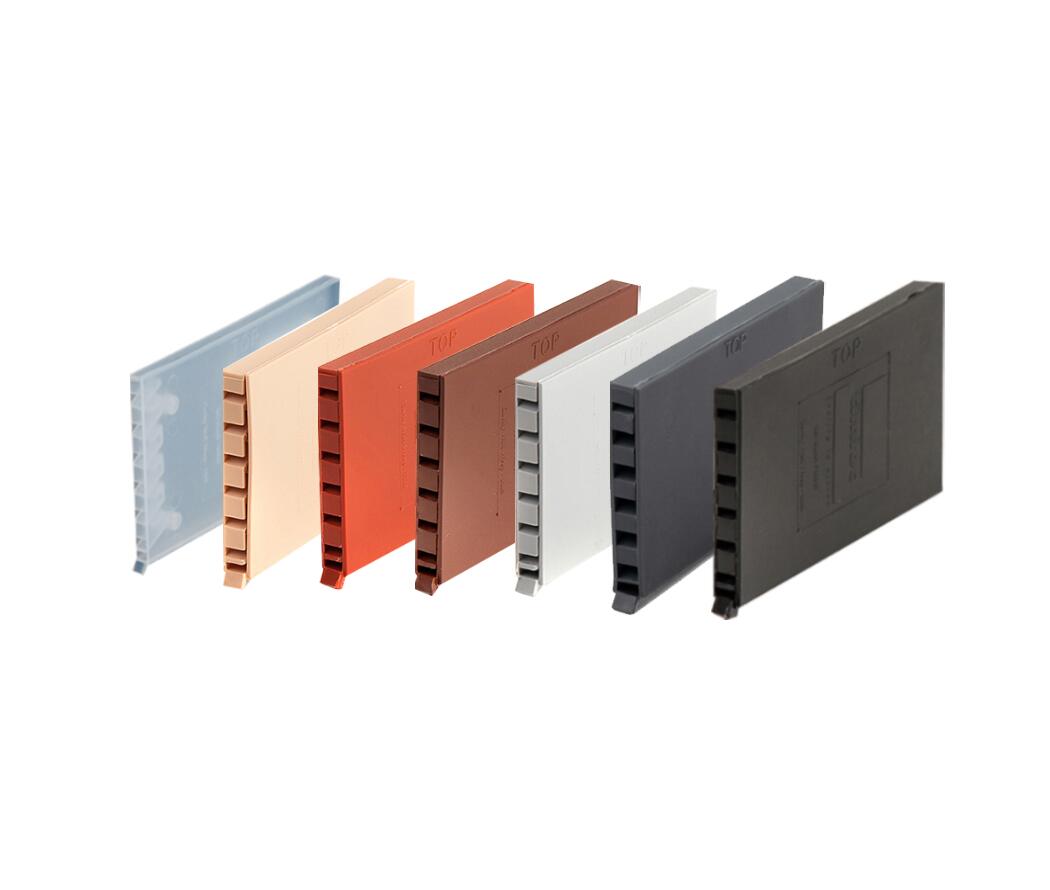

Commonly made from plastic or metal (and occasionally featuring a mesh or grille), these vents can be fitted during construction in place of multiple short weep holes. In some designs, they may double as partial ventilation openings, promoting airflow in addition to letting moisture drain away. For architects and builders dealing with high-exposure façades, parapets, or extra-thick cavities that can accumulate significant water, full-height weep holes can provide enhanced drainage capabilities.

2. Why Choose a Full-Height Design?

While standard or “short” weep vents suffice for most typical cavity walls, certain factors make full-height weep holes more appealing:

1. High-Exposure Walls
   In coastal or high-wind areas, driving rain can saturate the outer leaf more aggressively. A larger drainage path ensures that significant volumes of water exit quickly without pooling or bridging.

2. Taller Walls or Multi-Course Cavity Trays
   Some projects use stepped or multi-level cavity trays for structural or design reasons, leading to complex water-collection points. A full-height channel can handle drainage from multiple steps in one continuous path.

3. Extra Capacity
   Full-height vents accommodate a greater flow of water, reducing the likelihood of blockages or overflow during prolonged rainfall. They also ease concerns that small, single-slot weeps might clog with mortar droppings.

4. Combined Ventilation
   If designed with an open or partially open top, a full-height weep can allow limited airflow, helping to reduce condensation risk in the cavity. This dual role can be especially valuable in thicker or heavily insulated walls.

5. Drainage for Parapets or High-Level Trays
   Parapet walls often accumulate moisture at the top course. An extended weep might run downward through multiple brick courses, ensuring water from the parapet’s membrane or tray has a clear exit.

3. Typical Use Cases and Examples

1. High-Rise or Multi-Storey Construction
   Where continuous cavity trays run across multiple floors—or at least at each floor level—full-height weeps can drain water from more than one tray if aligned correctly, minimising the number of vent openings needed.

2. Wide Cavity Walls
   Projects using thick insulation boards or large cavity gaps sometimes face bigger moisture loads. A more substantial weep design ensures that any accumulation empties swiftly.

3. Exposed Sites
   Coastal, hilltop, or open-country buildings endure strong wind-driven rain that can saturate the outer leaf. A taller weep can handle peak flows without risk of water backing up in the cavity.

4. Parapets and Flat Roof Edges
   Moisture can collect behind lead flashings or membranes at parapet tops, and standard short vents may not suit the thicker parapet structure. Full-height designs provide a drainage path through several courses of brick down to an external drip.

5. Specialised Commercial Façades
   In some commercial or industrial buildings, long horizontal channels or extensive tray systems may be used for aesthetic or functional reasons, making a more robust weep design beneficial.

4. Key Design Features of Full-Height Weep Holes

Although manufacturer specifics vary, full-height weep products typically share several attributes:

1. Elongated Vertical Aperture
   Stretching over multiple brick courses—ranging from roughly 100 mm to 300 mm in total height. Some are customisable for unique cavity dimensions.

2. Integrated Drip or Baffle
   To prevent water from clinging or reversing back into the cavity, many designs include a drip lip or baffle near the vent’s outer edge.

3. Insect or Debris Guards
   Larger openings can be more prone to blockages. Protective grills, mesh, or angled fins inside the channel keep out insects, windblown litter, or mortar droppings.

4. Optional Ventilation
   Some full-height weeps incorporate a partial ventilation feature, maintaining a small air gap at the top once mortar is set, thus promoting cavity airflow while still directing water outward at the bottom.

5. Varied Material Options

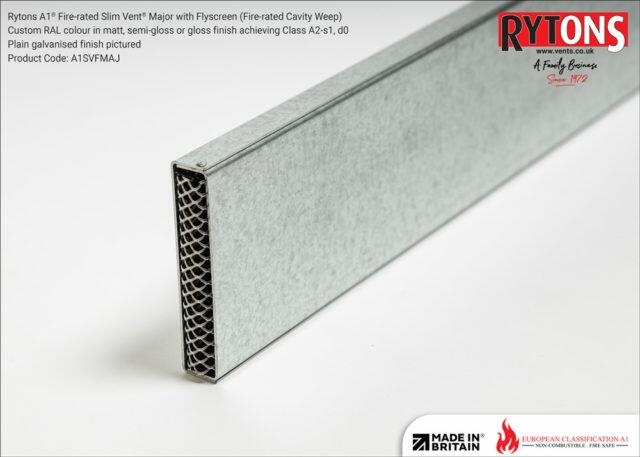

   Commonly plastic or metal, but non-combustible variants (e.g., stainless steel) also exist for high-rise or regulated buildings. Ensuring a robust material that withstands UV exposure, temperature fluctuations, and potential mechanical damage is crucial.

5. Installation Considerations

Full-height weep holes follow many of the same best practices as standard weeps but require extra attention:

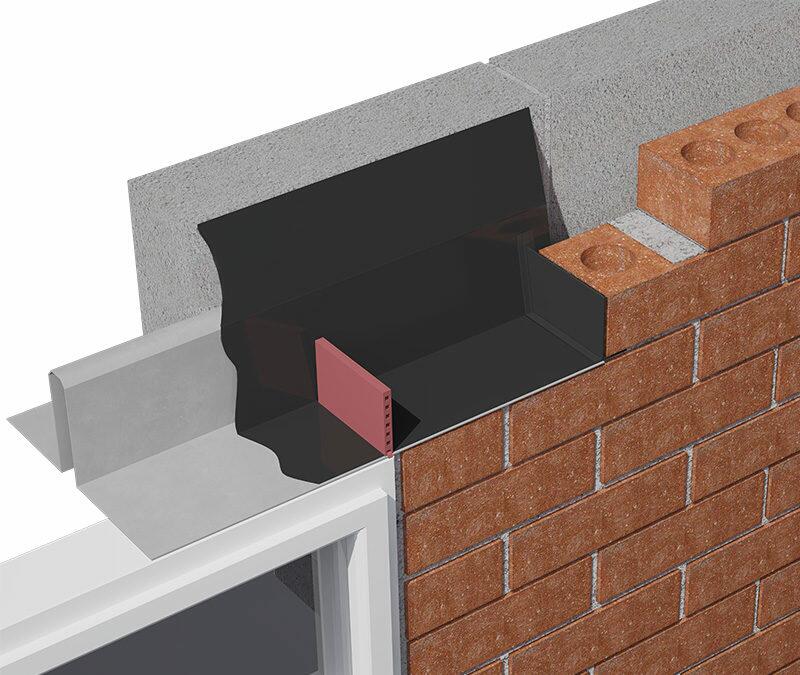

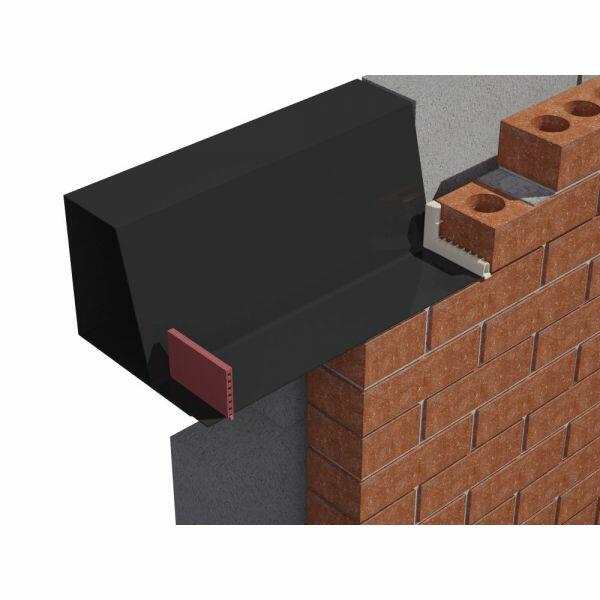

1. Accurate Alignment with Trays
   A taller channel must still meet the cavity tray or horizontal barrier at the correct level. Typically, the weep’s bottom lines up with the tray’s slope, while the top section extends above, possibly spanning multiple courses.

2. Proper Spacing
   Even though one full-height vent may handle more water, you cannot rely on a single opening to drain an entire tray line if it stretches a long distance. Maintain a recommended interval—often 450 mm to 900 mm—to ensure evenly distributed drainage.

3. Mortar Protection
   Given the extended dimension of the channel, ensure mortar does not slump or drop into the vent during installation. Some products come with temporary protective caps or require a two-stage installation approach.

4. Insect and Debris Shielding
   Double-check any integral screens or flaps are in place and not crushed by mortar. A partial clog at the top or middle of a full-height channel can undermine the entire vent’s purpose.

5. Thermal Bridging
   If metal weeps are used in a thicker wall, consider whether the taller vent might introduce a thermal bridge. Some designs incorporate minimal metal contact or a break within the channel to mitigate conduction.

6. Recording and Inspections
   Building control or warranty inspectors will likely want to confirm correct placement, especially if full-height solutions appear less common in local practice. Photograph or log each installed weep for easy reference.

6. Advantages and Potential Drawbacks

Advantages

• Increased Drainage Capacity
  Handles heavier or more continuous water flow, reducing the risk of back-up during storms.

• Versatile for High or Complex Details
  Ideal for parapet walls, multi-storey cavity trays, or wide cavities needing a robust solution.

• Possible Airflow Benefit
  Some designs incorporate partial venting, improving cavity dryness overall.

• Fewer Individual Openings
  In certain configurations, one full-height weep might replace multiple smaller vents spaced closely, streamlining the façade.

Potential Drawbacks

• Higher Cost
  Extended vents with mesh or flaps can be more expensive per unit than simple short vents.

• Trickier Install
  Aligning a multi-course channel requires careful bricklaying, possibly more labour or skill.

• Less Common, So Less Familiar
  Builders used to standard weep holes might be less confident with a tall vent design, risking mistakes if not well briefed.

7. Matching Full-Height Weeps with Your Building Needs

So how do you decide if full-height weep holes suit your project?

1. Assess Exposure and Complexity
   Is the façade subject to extreme wind-driven rain? Are there multiple or stepped cavity trays? If yes, you may benefit from the extra capacity.

2. Cavity Width and Height
   Larger cavities or parapet walls often see more water accumulation or require deeper channels to properly exit water. Full-height weeps can adapt to these dimensions.

3. Architect’s or Client’s Preferences
   Some designs prefer minimal vent holes or a small number of more substantial vents for aesthetic reasons. Full-height vents may integrate neatly into fewer perp joints if the façade design allows.

4. Budget Constraints
   If you are working on a cost-sensitive development where standard single-course weeps suffice, an upgraded approach might be superfluous—unless the site’s climate or building code insists on more robust drainage.

5. Fire Safety Requirements
   If the building is high-rise or falls under stricter combustibility rules, you may need a non-combustible full-height vent. Verify that the product meets the required classification (e.g., A1 or A2-s1,d0).

8. Sourcing Full-Height Weep Holes

While not as ubiquitous as short weep vents, multiple manufacturers produce extended weep solutions in plastic or metal variants. At Spechunter, we offer a curated range of such products, including both standard and non-combustible lines. Our technical team can advise on:

• Appropriate vent heights and shapes based on your cavity depth

• Spacing recommendations in line with local best practices

• Compatibility with relevant building regulations (e.g., Approved Document B for fire safety, or Approved Document C for moisture)

• Next-working-day delivery possibilities for many items, keeping tight construction timelines on track

If you face unusual parapet geometry or stepped tray details, sharing your plans or pictures can help us propose a custom approach that harnesses the benefits of full-height drainage.
