Wall Ties Guide: Absolutely Everything You Need to Know

Wall ties might not be the first thing that comes to mind when considering a building’s structural integrity, yet they play a crucial role in keeping walls safe, stable, and properly bonded. Used to connect two leaves of masonry together or secure masonry to additional structural elements, wall ties not only ensure that walls perform as intended but also help manage expansion, contraction, and other movement that occurs over a building’s lifespan. In this comprehensive guide, you will learn everything you need to know about wall ties—what they are, how they work, why they are so important, and how to select and install the right product. By the end, you will be well equipped to make informed decisions about wall ties for your next project, while also knowing where to turn for more detailed information on specific types such as movement ties, timber frame ties, and low thermal conductivity solutions.

Throughout this guide, you will also find references to additional resources in our blog series, where we take a deep dive into particular categories of wall ties and best practices for specialised applications. This hub-and-spoke approach helps you pinpoint precisely the information you need, whether that be on the mechanical properties of certain ties, their compatibility with various construction methods, or guidelines on installing them in line with UK Building Regulations. If, for example, you need an in-depth look at how to manage expansion and contraction, you can consult our dedicated spoke article on movement ties, or if you are interested in low thermal conductivity solutions, you can look into our piece on energy-efficient ties.

Above all, Spechunter’s priority is to ensure high-quality, fully compliant building solutions. From offering next-working-day delivery on most products to providing expert technical advice, we are committed to helping builders, contractors, and specifiers create safe and long-lasting structures.

Understanding the Role of Wall Ties in Modern Construction

Wall ties serve as the hidden, often underestimated connectors that transfer loads between masonry leaves or link masonry to a structural frame. The simplest way to imagine their function is to think of them as a bridging mechanism: they help hold two separate elements together so that they act as one, preventing issues such as bowing, cracking, or partial collapse.

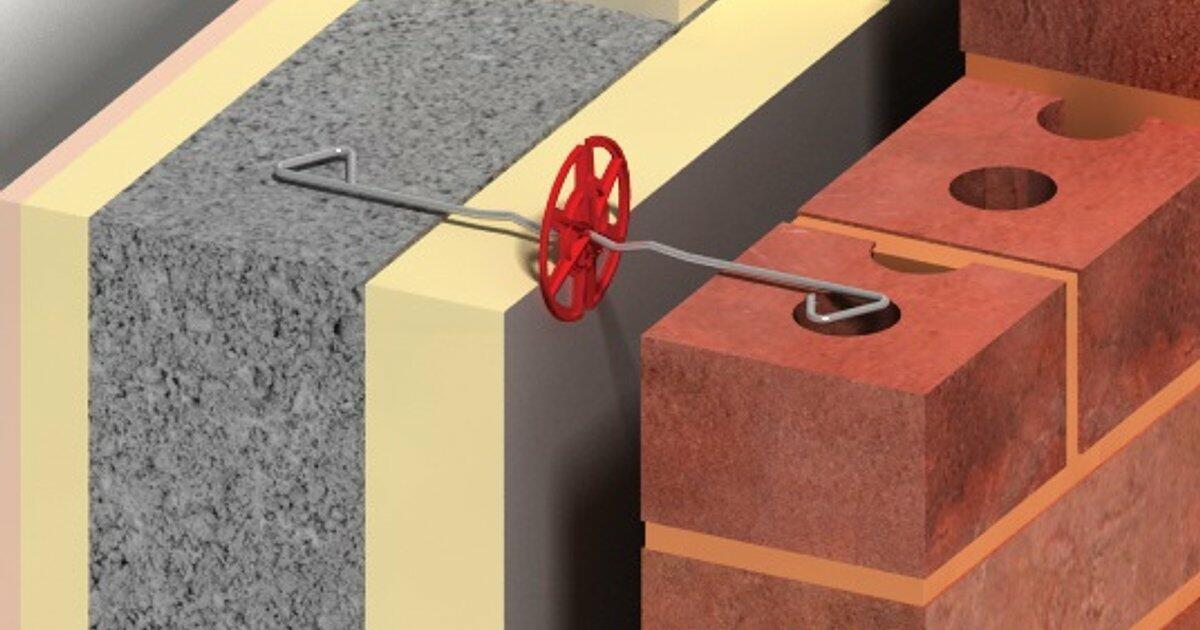

Modern cavity wall construction relies heavily on wall ties. In these situations, you generally have an external leaf and an internal leaf, with an air or insulation-filled cavity in between. Wall ties are inserted across that cavity at set vertical and horizontal centres, tying the two leaves securely so they work together, especially when faced with wind loads or everyday environmental stresses.

Many building regulations in the UK, including guidance in Approved Document A, highlight the need for the correct specification and installation of wall ties. The right tie choice will factor in building height, location, wind exposure, and the structure’s overall design. When done correctly, wall ties will safeguard structural integrity, reduce cold bridging, and preserve the building envelope’s stability over time.

Key Benefits of High-Quality Wall Ties

A high-quality wall tie that is compatible with the building’s design and meets all relevant UK regulations can make a substantial difference to a project’s longevity and efficiency. One core benefit is structural reliability: an appropriate tie ensures the two leaves of masonry move together, reducing the likelihood of cracks. Another benefit is moisture management. Properly designed ties include drip features to stop water crossing the cavity, preventing damp issues. Certain modern ties also contribute to improved thermal efficiency, especially if they are made from materials that minimise heat transfer, such as low thermal conductivity basalt fibre.

Durability is crucial as well. Many older properties across the UK have suffered from ‘wall tie failure,’ typically caused by the corrosion of poorly galvanised steel ties. This is one of the reasons stainless steel has become the most common material for modern wall ties, significantly reducing the risk of corrosion over time. With correct installation and a reputable manufacturer, high-quality wall ties can last for the entire design life of a building without needing frequent replacement.

Types of Wall Ties and Their Applications

The industry has developed various classifications of wall ties to reflect the structural loads they can handle, alongside different designs intended for specific building types. You will often see wall ties categorised by a ‘Type’ number (Types 1, 2, 3, 4 and 6) according to BS EN 845-1. Each one is suitable for a particular range of building heights, wind speeds, levels of exposure and wall build ups. Understanding these categories will help guide a project’s specification:

Type 1 Ties (15m and above)
Often specified for high-rise or otherwise demanding applications where wind loads and structural stresses are significant. These ties generally have robust dimensions and special features to accommodate more intense force.

Type 2 Ties (10-15m buildings)
Widely used in general housing and low-to-medium rise buildings, Type 2 ties can deal with typical urban or suburban conditions, where wind speed and exposure are moderate.

Type 3 Ties (10-15m buildings)
Similar to Type 2 but designed for slightly less demanding conditions. These might be used in sheltered regions or for housing developments with limited wind exposure.

Type 4 Ties (Up to 10m building height and generally in party walls)
Best suited for areas with minimal wind exposure and low-rise builds, such as bungalows and small-scale housing. Type 4 ties focus on basic stability in calmer environments.

Type 6 Ties
These ties are designed for Timber Frame buildings as they allow a higher tolerance of movement from the timber frame.

Aside from the Type classifications, there are also ties that address unique challenges:

Movement Ties
These ties allow controlled movement, typically in larger buildings where the brickwork exceeds 10 meters. If you would like a deeper exploration of how they manage thermal and moisture-related expansion, you can read our spoke article, “Movement Ties 101: Managing Expansion and Contraction in Masonry Walls.”

Timber Frame Ties
Designed for the unique requirements of timber structures, these ties attach the masonry leaf to a wooden frame. If you are involved in constructing or refurbishing timber frame buildings, you might find our spoke article “Timber Frame Ties Explained: Ensuring Structural Integrity in Wood-Frame Builds” particularly useful.

Low Thermal Conductivity Ties
Specifically engineered to minimise heat loss across the cavity, low thermal conductivity ties help maintain energy performance and meet stringent insulation targets. More information is available in our piece “Low Thermal Conductivity Ties: Maximising Energy Efficiency in Modern Construction.”

Porotherm Wall Ties
Created to work with lightweight clay block systems for rapid construction and improved insulation. Using these ties can reduce labour time and enhance the performance of Porotherm blocks. Further details can be found in “Porotherm Wall Ties & Innovative Masonry Solutions.”

Materials and Manufacturing Considerations

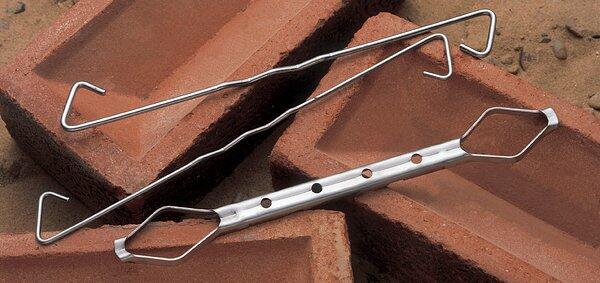

Modern wall ties are most commonly made from stainless steel. The corrosion resistance of stainless steel is far superior to traditional mild steel with galvanised or zinc coatings, reducing the risk of rust over time, even in harsh environments. This boost in longevity provides confidence that the ties will hold up in the face of moisture, accidental bridging of the cavity, or exposure to salt spray in coastal regions.

Many reputable manufacturers, such as Ancon, also implement strict quality-control processes. These checks help to ensure consistent dimensions, tensile strength, and design features, including the drip points to prevent water transfer. At Spechunter, you can explore different brands and products, including Ancon SPS Wall Ties—discussed in our spoke article “Ancon SPS Wall Ties: A Closer Look at Specifications and Benefits”—along with additional well-known solutions designed to meet specific building needs.

Regulations and Standards in the UK

Several codes, standards, and regulations come into play when selecting wall ties for residential, commercial, or industrial builds:

1. BS EN 845-1
   This is the main standard for ancillary components used in masonry. It outlines requirements for materials, dimensions, and performance testing of items like wall ties.

2. Approved Document A (Structure)
   Part of the Building Regulations for England, it provides technical guidance on ensuring adequate strength and stability in walls. Wall ties, their spacing, and their suitability for different heights and wind zones often derive from this document.

3. NHBC Standards
   If you are working on housing projects covered by the National House-Building Council, you must meet their requirements for tie density, embedment, and corrosion resistance.

4. CE Marking and UKCA Marking
   Post-Brexit, it is important to verify the relevant marking for wall ties, confirming that they have been tested and certified to meet British standards. Reputable products usually have clear labelling indicating compliance.

Project managers, site supervisors, and specifiers should ensure that any chosen tie meets or exceeds these standards and that the wall tie’s classification is compatible with the building’s environment, height, and design. Doing so can mitigate costly and time-consuming issues later.

Installation Best Practices

Proper installation is just as important as selecting the right tie. Even the highest-quality wall tie can fail if embedded incorrectly or if it does not adhere to recommended installation spacing.

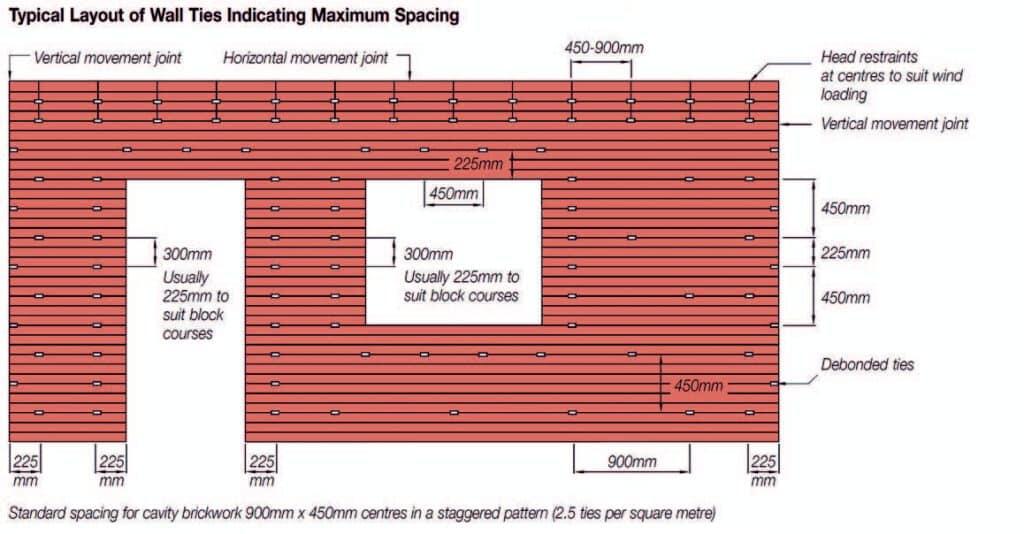

Spacing often follows a common formula. In many standard houses, a typical layout might be 2.5 ties per square metre, although higher densities are needed around door and window openings or around the roof. Another important factor is embedment, where each end of the tie needs to be set into the mortar joint by a specified minimum length (often 50 mm to 75 mm for stainless steel ties, though this can vary with design and manufacturer recommendations).

Ensuring a correct drip point orientation is critical to preventing moisture from tracking across the cavity. Most wall ties now have a multi drip feature. This feature should always be angled downward to the outside leaf, so that water can safely drip away and not saturate interior masonry.

It is also wise to install ties on a slight outward pitch towards the external leaf. If any moisture collects on the tie, this slight angle ensures water travels outward rather than inward. Ties should never slope inwards, and they should be placed at a consistent height to maintain neat, horizontal coursing.

Installation might require additional attention in special situations, such as timber frames, which have different spacing needs and different ways of securing ties to studs. For these scenarios, you may refer to our spoke article, “Timber Frame Ties Explained: Ensuring Structural Integrity in Wood-Frame Builds,” for an in-depth discussion.

Common Mistakes and How to Avoid Them

Perhaps the most widespread mistake is improper embedment. If a tie is not correctly placed within the mortar, it can either be insufficiently anchored, which weakens structural performance, or it can become prone to bridging damp. Another frequent error occurs when the drip point ends up inside the mortar bed, stopping it from functioning. It is vital to ensure the drip is positioned in the open cavity space rather than buried.

Over-tightening or bending a tie during installation may cause stress points in the metal, potentially leading to premature fatigue or corrosion. This is of particular concern in movement ties, which are supposed to accommodate expansion and contraction. Similarly, if mortar droppings fall onto wall ties in the cavity, they can form a ‘bridge’ that carries moisture across. Simple on-site practices such as using cavity battens or boards while building up courses can reduce that risk.

Finally, selecting the wrong Type for the building’s exposure or height can quickly lead to building control issues and long-term damage. Always verify that your chosen tie is rated for the location and structural demands of the project.

Inspecting and Maintaining Wall Ties

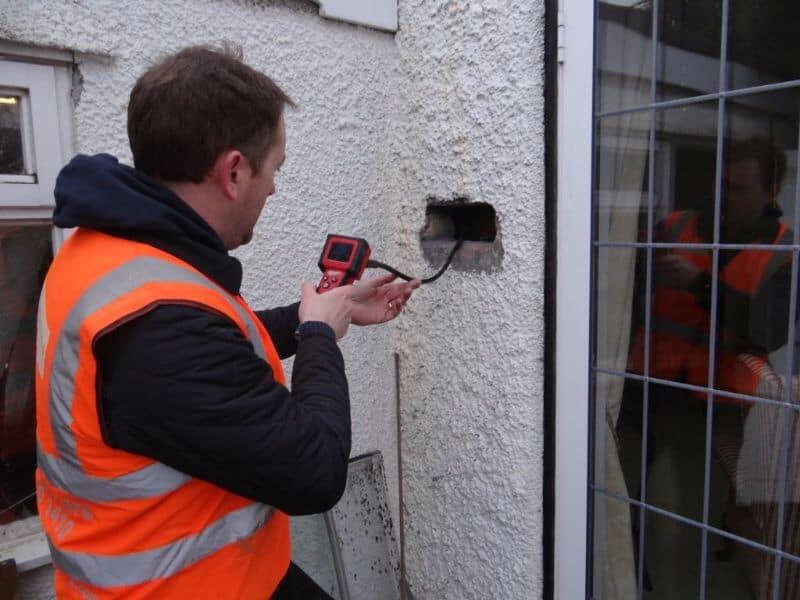

Although modern stainless steel ties are designed to last decades, it is good practice to perform periodic inspections, especially in older properties or when buying and selling a building. Some warning signs of wall tie failure include horizontal cracks running through the bed joints, bulging walls, or a noticeable shift between the inner and outer leaves.

For older buildings, it may be a matter of replacing corroded galvanised ties that have deteriorated over time. Remedial ties, often installed from the exterior without fully removing masonry, can restore structural integrity. If you have concerns about potential issues with your wall ties, professional surveys are advisable. These surveys may involve endoscopic cameras or metal detectors to locate and assess ties within the cavity.

When to Replace or Upgrade Your Wall Ties

Replacement or upgrade decisions often hinge on building age, performance requirements, or newly identified problems. For instance, if you are renovating a listed property where the existing ties are heavily corroded, remedial ties provide a quicker way to restore stability. Alternatively, if you have discovered that your current ties do not meet new insulation or thermal bridging standards, switching to low thermal conductivity ties may be beneficial in terms of meeting modern building regulations and improving the property’s energy efficiency.

In some cases, expansions to an existing building—such as adding new floors—may demand an updated approach. If you are moving from a two-storey to a three-storey structure, the wind load, the building’s height classification, and the distribution of ties may change. Understanding these factors before construction work begins will help avoid structural complications later.

Integrating Wall Ties with Other Building Elements

While wall ties handle load transfer and stability, they do not act alone. The proper functioning of a cavity wall system often depends on how all the components fit together. For instance, cavity insulation boards should not interfere with the tie’s drip point, nor should insulation push the tie out of alignment.

Similarly, well-installed weep holes allow water that reaches the external leaf or the cavity to drain away, preventing moisture accumulation. If you are curious about moisture management, you can reference our Weep Holes hub article on the Spechunter blog, where we explore how these simple openings prevent damp problems and maintain the life of your building envelope.

In terms of preventing damp and water ingress, a damp proof course (DPC) also works hand in hand with properly installed wall ties. Ties must often be placed just above or within the DPC level to help direct moisture away while maintaining the structural link. If you want to read more about how DPC fits into an overall moisture-management strategy, our “Complete Guide to Damp Proof Courses (DPC): Materials, Installation, and Regulations” hub can provide valuable insights.

Why Choose Spechunter for Wall Ties and Related Products

Spechunter is dedicated to supplying the highest quality brickwork sundries and building supplies, backed by over 35 years of industry expertise. Our range includes ties for all building types, from domestic housing to large commercial projects. By working with trusted brands like Ancon and ARC, we ensure that our customers can confidently select products that meet or exceed regulatory standards. With two strategically located warehouses, we offer next working day delivery on many of our wall ties if ordered before midday, ensuring that you can keep your project on schedule.

Our technical support team is also on hand to help you navigate questions about the correct tie type, required tie density, or any unique considerations your project might present. Whether you are designing a new build, upgrading an existing property, or embarking on a major renovation, we aim to streamline the purchasing process with competitive prices and reliable service.

Bottom Line

Wall ties remain an essential yet frequently understated component in masonry wall construction and design. From the smallest bungalows to towering commercial blocks, wall ties help maintain the structural integrity of buildings by connecting two  leaves of masonry, distributing loads evenly, and preventing potentially serious issues like bowing or damp penetration. Their significance within UK construction cannot be overstated, particularly given the varied climate, the wide range of building types, and the strict adherence to performance standards.

By choosing the correct wall tie for your project—be it a low-rise house in a sheltered suburb or a tall, exposed building along a windy coastline—you take a key step in ensuring the durability and safety of the structure. Installing those ties with care, following recommended spacings and embedment depths, and integrating them sensibly with damp proofing, cavity insulation, and other building elements helps create an environment that is stable, comfortable, and long-lasting.

We hope this guide has provided you with both a strong overview of why wall ties matter and the practical insights required to make confident decisions. Whether you need more detailed advice on particular tie types, want to learn how to integrate them effectively with other building components, or are simply looking to purchase the correct products, Spechunter has you covered. Do explore the linked spoke articles for further reading, or visit our wall ties page to examine our diverse, high-quality range. If you have any questions, our experienced team is always on hand to provide tailored recommendations that align with your project’s requirements.
