Why Weep Holes Matter: Preventing Moisture Build-Up in Masonry Walls

When constructing or refurbishing masonry walls—be they brick, block, or stone—managing moisture is a core concern. Water that seeps or condenses within a wall cavity can have damaging effects if it cannot escape, leading to issues like damp patches, mould growth, or even structural weaknesses over time. Weep holes offer an effective and straightforward solution: they act as drainage channels that allow water to exit the cavity, preventing hidden accumulation and preserving the health of both the building and its occupants.

This spoke article delves deeper into the importance of weep holes, explaining exactly how they stop moisture from building up in cavity walls. You will learn the consequences of neglecting proper drainage, discover why best practices in weep hole design and placement are essential, and gain insights into how these small apertures support a broader strategy of maintaining a dry, long-lasting structure. If you have not read our main hub piece—A Complete Guide to Weep Holes—you may wish to do so first for an overview of weep hole types, placement guidelines, and key regulatory considerations. Once you have the big picture, this focused discussion will help you fully grasp the “why” behind weep holes, reinforcing their critical role in modern construction.

1. Understanding Moisture Build-Up in Masonry Walls

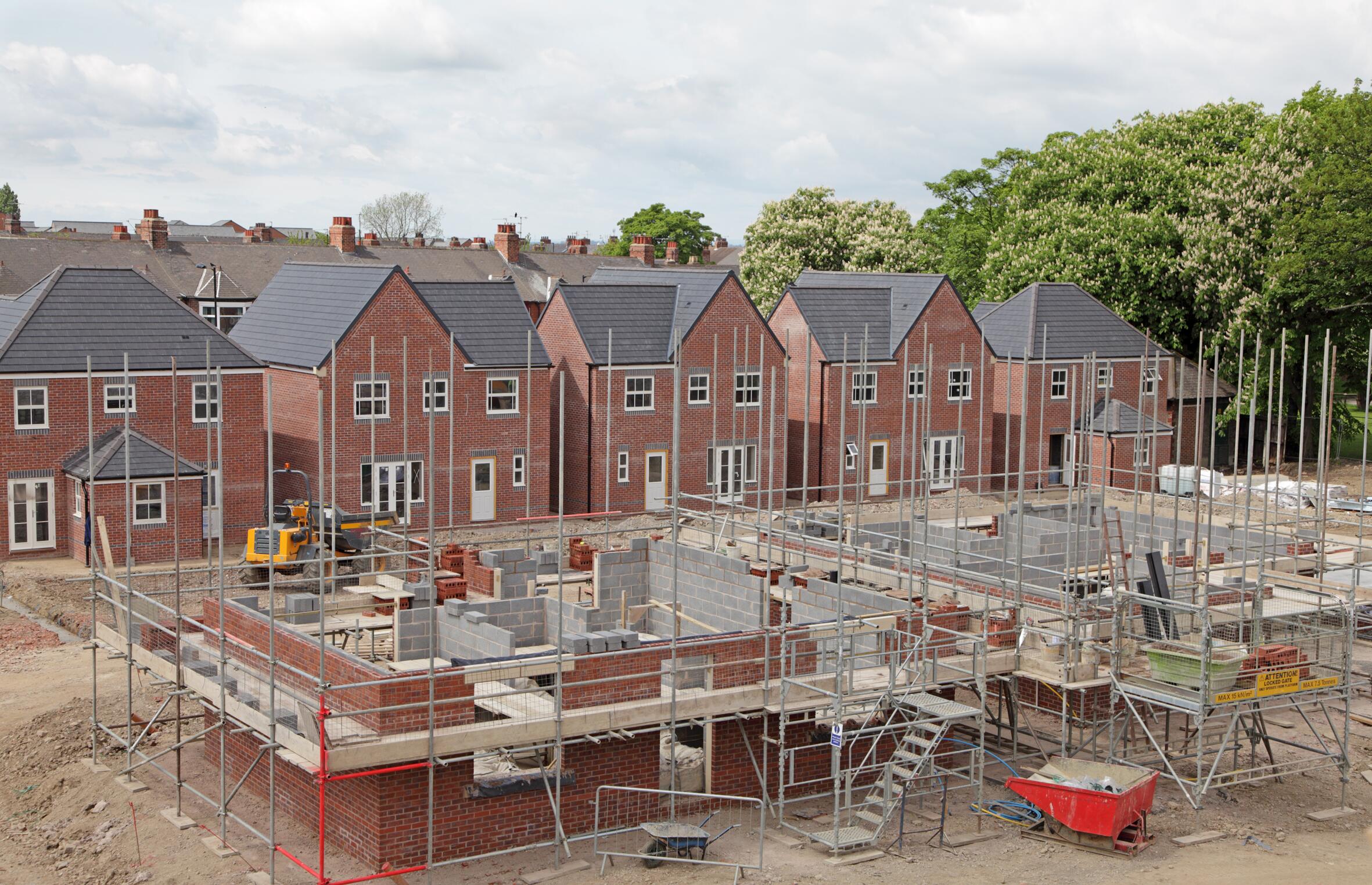

Masonry cavity walls typically consist of an outer leaf and an inner leaf separated by a gap (the cavity) that may be partially or fully filled with insulation. This gap is designed to enhance insulation and manage moisture, but it only works effectively if water that enters from the outside can be channelled away. Without a drainage path, water might collect in the lower sections of the cavity or against horizontal barriers like cavity trays, eventually finding its way to the interior leaf.

Sources of Moisture can include:

1. Driving Rain
   Wind-driven rain can penetrate the outer leaf through small mortar cracks or porous brick faces.

2. Condensation
   Warm air within the cavity can meet colder surfaces, leading to water droplets forming on internal faces.

3. Leaking Services
   Faulty gutters, pipes, or poorly sealed window and door openings can introduce water into the cavity.

4. Construction-Phase Water
   Moisture from fresh mortar or inclement weather during the building process can temporarily increase the water load within walls.

If not drained or ventilated out, this moisture may dampen insulation materials, cause mortar or steel corrosion, encourage mould growth, and compromise internal finishes. Weep holes, strategically placed above cavity trays or at the base of the wall, offer a direct exit route for trapped water—stopping these issues before they escalate.

2. Consequences of Inadequate or Missing Weep Holes

Failing to install adequate weep holes, or neglecting to keep them clear, can lead to a range of expensive and inconvenient problems:

1. Damp Staining

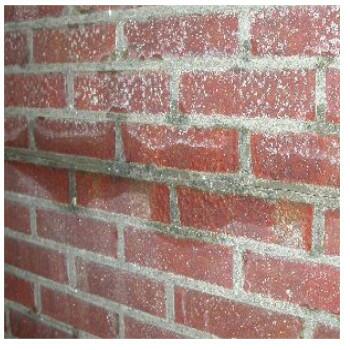

   Water seeking a path of least resistance can eventually seep through mortar joints to the internal leaf, resulting in discoloured spots on plaster or wallpaper.

2. Mould and Mildew
   Persistent damp conditions support fungal growth, causing unpleasant odours and potentially harming air quality. Mould can thrive behind skirting boards, in insulation, or within voids where inspection is difficult.

3. Insulation Degradation
   In many modern cavity walls, partial or full-fill insulation is used. Saturated insulation performs poorly, as water replaces air pockets essential for thermal resistance. This leads to higher energy bills and reduced occupant comfort.

4. Mortar or Steel Corrosion
   Metals like wall ties can corrode if perpetually exposed to moisture. Over time, this compromises structural integrity. Additionally, mortar joints themselves can weaken.

5. Freeze-Thaw Damage
   In colder climates, water trapped in or behind masonry can freeze and expand, widening cracks or loosening bricks.

6. Complex Remedial Work
   Tracking down and fixing moisture ingress post-construction often requires partial demolition of the external leaf, removing bricks, or injecting damp-proof materials—much more disruptive and costly than installing proper drainage from the outset.

Simply put, ignoring the need for weep holes exposes a building to continuous damp hazards, undermining both its longevity and occupant well-being.

3. The Science Behind Weep Holes: How They Prevent Moisture Accumulation

Weep holes rely on the principles of gravity and drainage. Once water enters the cavity—through infiltration, condensation, or leaks—it naturally flows downward along the outer leaf or cavity insulation. At the base of a cavity tray or at specific horizontal planes in the wall, the weep hole provides an escape route to the outside. By ensuring that water never builds up more than a few millimetres above the tray or DPC line, weep holes keep the inner leaf relatively dry.

In many designs, sloped or stepped cavity trays guide water toward the weep hole’s location. This synergy means minimal water remains in the cavity for extended periods—drip by drip, it exits to the external face, evaporating quickly once it hits outside air or run-off channels. Additionally, some weep hole systems incorporate ventilation features that promote air circulation, further reducing condensation risk. By providing this continuous drainage and occasional airflow, weep holes maintain the intended dryness of cavity walls.

4. Where Weep Holes Are Most Needed

Weep holes can appear in various locations, each serving a distinct function:

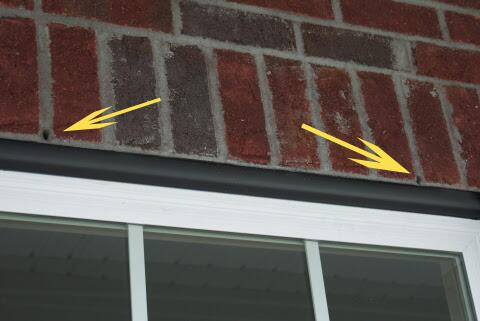

1. Above Window and Door Openings

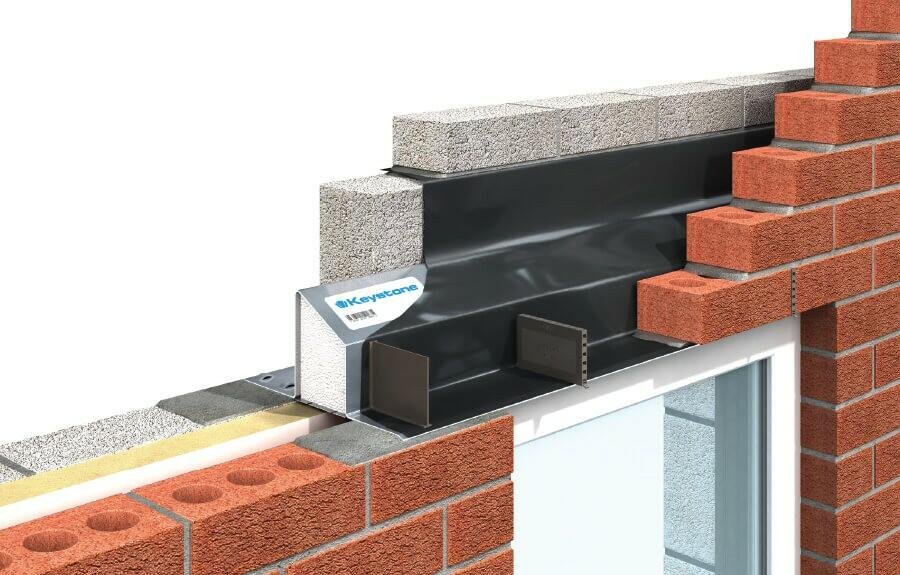

   A lintel with a cavity tray is fitted above most doors and windows. Placing two or more weep holes at the tray’s level ensures any water that enters behind the façade drains out rather than pooling on top of the lintel.

2. At the Base of the Wall
   The DPC level in a cavity wall often has a horizontal tray or membrane. Installing weep holes here ensures that any moisture reaching the bottom of the cavity can escape safely.

3. Intermediate Cavity Trays
   In multi-storey constructions, cavity trays can step up at each floor level or around complex shapes. Each tray typically needs at least one weep hole every few hundred millimetres to carry water out.

4. Parapets and Balconies
   Horizontal surfaces or parapet walls often include lead or proprietary membranes to stop water infiltration from above. Weep holes above that membrane line discharge collected rainwater or condensation.

5. Retaining or Solid Walls
   Although not always designated “weep holes” in the same sense, retaining walls commonly feature small openings or drain pipes near the base to relieve water pressure. The function aligns closely with that of standard weep holes in cavity walls.

Essentially, any horizontal barrier or step in a wall that could accumulate water will benefit from a corresponding run of weep holes.

5. The Role of Weep Holes in the Wider Building Envelope

Weep holes rarely work alone. They typically form part of a holistic moisture-management strategy that includes:

1. Damp Proof Courses (DPC)
   Horizontal membranes that stop rising damp from the ground. If the DPC in the cavity is not aligned with weep holes or if bridging occurs, water can bypass the barrier.

2. Cavity Trays

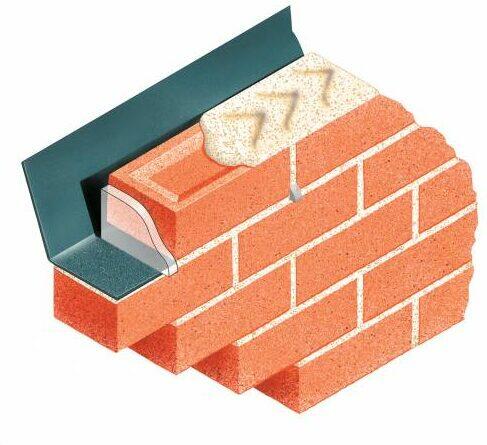

   Sloped or stepped trays that direct water to a safe exit point—usually the weep hole. Without the tray, water might trickle uncontrollably within the cavity, saturating insulation or internal masonry.

3. Ventilation Measures
   Ventilated cavity barriers or open perp joints can help release moisture-laden air, working alongside weep holes to keep the cavity environment dry.

4. Adequate Flashing and Seals
   Around windows, doors, and roof abutments, properly sealed flashings ensure that any water infiltration is minimal and that the weep holes can cope with drainage demands.

When integrated effectively, these components ensure that water in the cavity never accumulates to harmful levels, drastically reducing the likelihood of damp-related damage.

6. Installation Recommendations for Effective Drainage

To maximise the moisture-preventing potential of weep holes:

1. Choose the Right Spacing
   For typical lintels, place at least two weep holes—one at each end. For wider openings or trays, add additional holes every 450 mm (approximately two brick widths). In standard runs at the base of walls, spacing around 900 mm is common, though local practices may vary.

2. Angle or Slope the Opening
   If using plastic vents, install them with a slight downward pitch outward, encouraging water to flow out readily. Any reverse slope can trap water behind the vent.

3. Protect Against Clogging
   During construction, mortar can drip into open holes, blocking them before they function. Using weep hole vents with integral protectors or capping them temporarily avoids this. Post-build, an inspection to remove any stray mortar or debris ensures a clear exit channel.

4. Match Aesthetics
   In prominent façades, consider a concealed or colour-matched weep hole product, so the building’s external appearance is consistent and discreet.

5. Combine with Fire Safety if Needed
   For high-rise or multi-occupancy buildings subject to Approved Document B restrictions, specify non-combustible weep vents. Confirm they integrate well with any cavity fire barriers or spandrel details.

6. Document Locations
   Keep a record of all weep hole placements. If the building undergoes façade modifications later (such as new cladding or landscaping changes), you will know exactly where the drainage openings lie to avoid blocking them.

7. Keeping Weep Holes Clear Over the Long Term

Weep holes typically require little maintenance, but a few routine checks can ensure they remain functional:

1. Seasonal Inspections
   After heavy rain or in spring, take a quick look to ensure water is dripping or draining if you see moisture on the exterior leaf. If no water flow is apparent, check for blockage.

2. Ground Level Maintenance
   If the building’s landscaping changes, ensure 150 mm clearance remains below any weep holes near the base of the wall. Soil, mulch, or paving that covers the opening negates its purpose.

3. Insect or Debris Removal
   Tiny insects or windblown debris sometimes nest in or clog weep holes. Gently clearing them with a narrow tool can restore proper function—many plastic vents include features to deter nesting, but vigilance is still useful.

4. Façade Renovations
   If you add external insulation or cladding, confirm that the new system includes a provision to maintain or replicate weep hole drainage. Closing up or bridging them inadvertently can lead to moisture problems.

8. Conclusion: The Hidden Hero of Damp Management

While not the flashiest component of a cavity wall, weep holes play a silent yet critical role in preventing the build-up of moisture, safeguarding insulation performance, and protecting internal finishes from damp damage. In synergy with cavity trays, DPC membranes, and the broader envelope design, they ensure that any water entering the cavity has a straightforward exit route—keeping the inner leaf dry and the building’s occupants comfortable.
