Cavity Trays Type Z Fixing Strap (6mm Holes) x 2m Length by Cavity Trays Limited

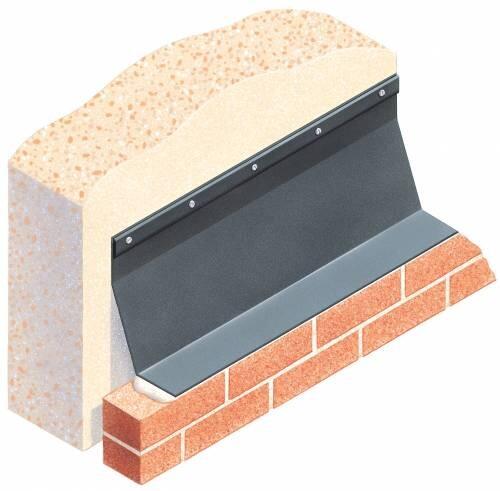

The Type Z Fixing Strap is a pre-formed fixing aid designed to mechanically secure flexible damp-proof courses (DPCs) such as polymer, bitumen, and polythene roll DPCs to the inner leaf of cavity walls. Measuring 2000mm in length and 30mm in width, this black PVC-U strap is pre-drilled with 4mm holes spaced at 150mm centres, allowing for straightforward installation.

Key Features

• Durable Material: Made from black PVC-U for long-term use and resilience in various site conditions.

• Pre-Drilled Design: 4mm fixing holes spaced at 150mm intervals to support easy and uniform fixing.

• Slight Arch Profile: Shaped to apply consistent securing pressure, accommodating uneven surfaces on the inner wall.



Applications
Ideal for supporting and retaining soft or flexible DPCs against a range of inner skins, including block, concrete, and timber. The Type Z Fixing Strap offers a reliable and economical way to ensure correct positioning of roll-type DPCs, as typically recommended by manufacturers.
