A Complete Guide to Weep Holes: Functions, Types, and Installation Best Practices
Managing moisture is one of the most fundamental challenges in construction. Even the best-designed masonry walls can accumulate water over time—whether from driving rain, condensation, or minor leaks—if they do not have a reliable drainage path. Weep Holes solve this problem by giving water an escape route, preventing hidden damp or water pressure from building up behind walls and damaging the structure. Though small and often inconspicuous, these openings or vents play a key role in moisture management, helping ensure that cavities remain dry and that the internal leaf (or supporting structure) remains protected.
But which type of weep hole is right for your project? How do you integrate weep holes with other elements like cavity trays, damp proof courses (DPC), or external cladding? And what regulations or best practices apply in the UK market? This hub article offers a comprehensive look at weep holes in modern construction, guiding you through the principles, product options, and installation tips you need to prevent costly damp-related damage. If you are new to the concept or simply looking to refine your knowledge, read on for a thorough understanding of these essential drainage points.
1. What Are Weep Holes and Why Are They Important?
A weep hole is simply an opening—often a small aperture in mortar joints, or a dedicated plastic or metal vent—positioned in a cavity wall, retaining wall, or other structure where moisture might collect. In cavity wall construction, for instance, water that seeps through the external leaf of masonry can accumulate atop a cavity tray or other horizontal barrier. Without a means of escape, this water could back up and find alternative routes into the inner leaf, causing damp patches, staining, or even structural deterioration over time.
Weep holes solve this issue by ensuring that any water reaching the cavity can drain out to the building’s exterior. By maintaining a dry inner leaf and preventing water build-up, weep holes help preserve insulation integrity, reduce dampness, and lower the risk of mould or corrosion of metal components (like wall ties).
Beyond cavity walls, weep holes can appear in retaining walls, parapets, and even window or door frames where water might collect. In each scenario, the principle remains the same: to give water that seeps or condenses behind a barrier a clear path to exit. While often overshadowed by more visible building elements, weep holes remain a quiet yet critical aspect of moisture control.
2. The Role of Weep Holes in UK Building Regulations
Although Approved Document C (Site Preparation and Resistance to Contaminants and Moisture) of the UK Building Regulations does not always reference “weep holes” explicitly, the principle of providing effective drainage from cavities is well established. Specifically, guidance around cavity trays in external walls includes the requirement for openings that let accumulated water drain safely to the outside. Failing to provide such drainage points can result in bridging, damp ingress, and non-compliance issues.

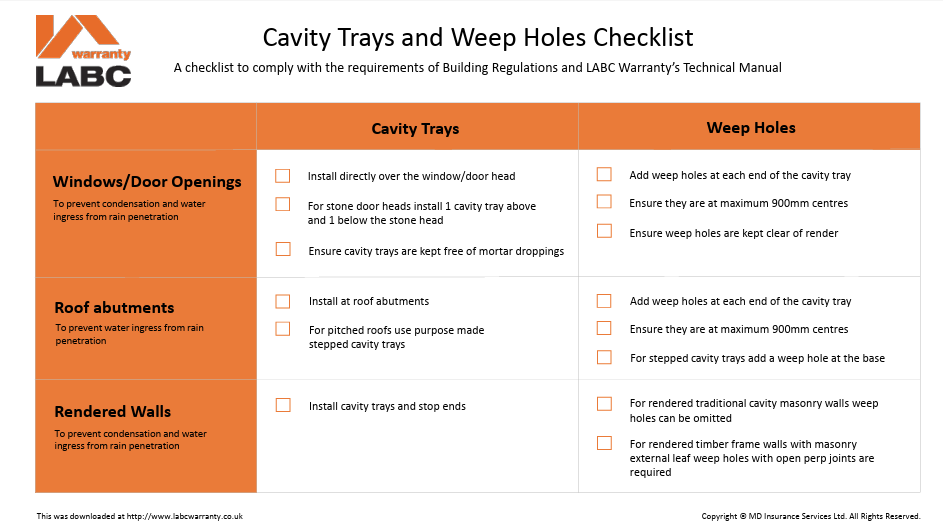

In many cases, building control officers expect to see weep holes at regular intervals—often every 900 mm or 1,000 mm (equating to roughly every third or fourth brick)—above openings like windows and doors, and at the base of cavity trays. They may also look for evidence that the selected weep hole product or detail is robust enough to prevent blockages by debris or insects, ensuring long-term functionality. By aligning with industry norms and best practice guidance from bodies like the NHBC (National House-Building Council), you can avoid compliance headaches down the line.
3. Common Types of Weep Holes
Weep holes vary in design, materials, and intended application. Some key categories include:
Simple Open Joints
In traditional construction, builders might leave a short, open head joint in the mortar. Although economical, these can become clogged by mortar droppings or insects and can be visually unappealing. Modern plastic inserts now offer a cleaner look and better functionality.Plastic or Metal Weep Vents

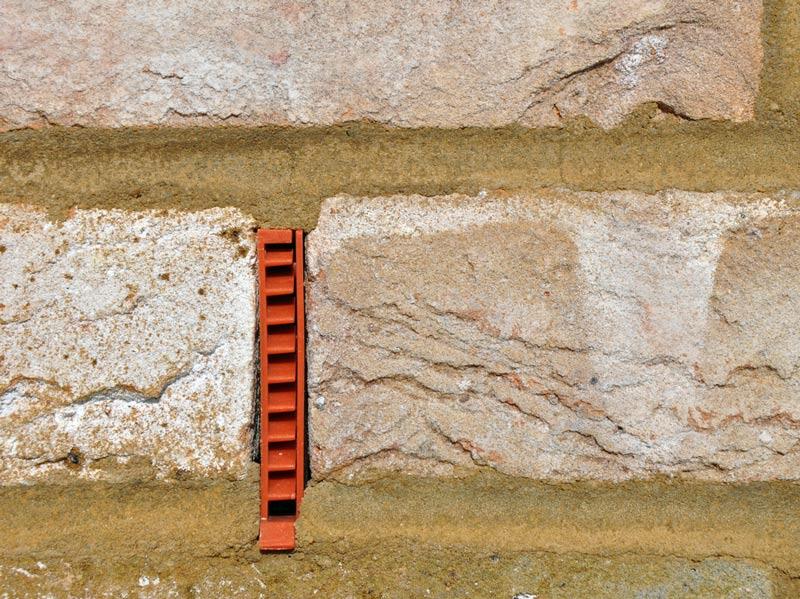

Prefabricated vents, often made of PVC or stainless steel, slot into the mortar joint. They maintain a small opening for water egress while featuring a grill or slat design to discourage blockage by dirt or insects. Many of these vents are colour-matched to the brick for a discreet finish.Concealed Weep Holes

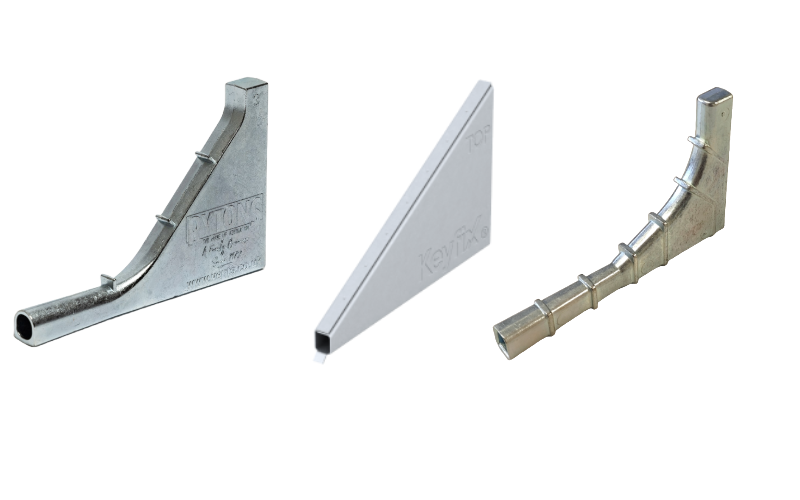

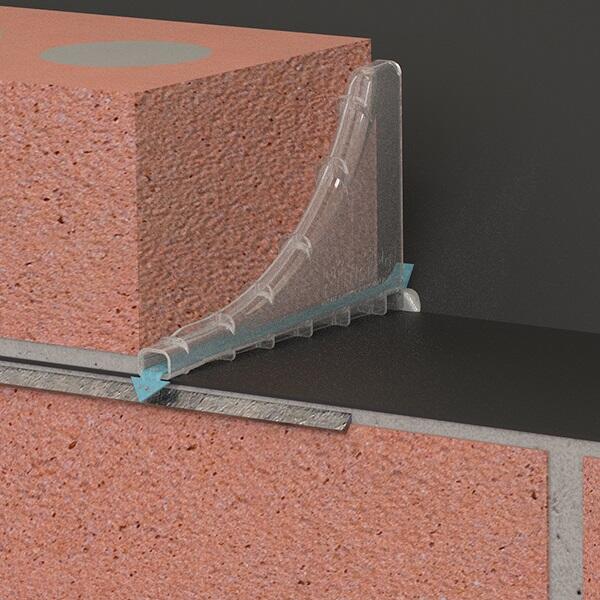

Designed with an internal channel, concealed vents allow water to drain out of the mortar joint without a visible opening. This is useful in premium projects or heritage contexts where preserving façade aesthetics is paramount.Full-Height Weep Holes
Usually applied in situations requiring a larger drainage capacity (e.g., in parapet walls or wide cavity scenarios). Instead of a narrow slot, these weeps run a taller channel, moving more water.Non-Combustible Weep Holes
With increased fire safety requirements in high-rise or multi-occupancy buildings, some manufacturers offer weep vents constructed from non-combustible materials (e.g., metal or specific ceramics). They help meet Approved Document B or other fire safety rules while still providing drainage.Retaining Wall Weep Pipes
In retaining walls, the weep hole might be a short PVC pipe or opening that discharges water at the base to prevent hydrostatic pressure build-up behind the wall.
Selecting the right weep hole depends on the wall’s design, aesthetic preferences, and any special constraints—like fire safety or higher drainage needs.
4. Key Considerations for Weep Hole Placement

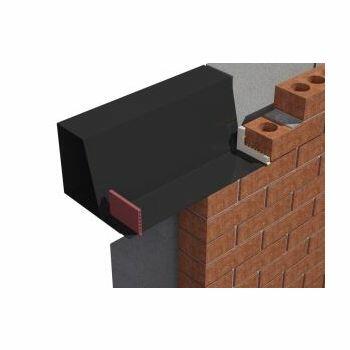

Weep holes generally follow the location of cavity trays or horizontal barriers. For example, in a standard cavity wall with a DPC/cavity tray over a window opening, you would place at least two weep holes directly above that tray—one near each end of the lintel—allowing water to exit on both sides. In extensive runs or wider openings, multiple weeps might be spaced every 450 mm (roughly every second brick) to ensure adequate drainage.
At the base of a cavity wall, near the ground floor DPC level, it is also common to see weep holes. This is to drain any water that reaches the lower cavity tray. In some designs, you might also need weep holes in parapets or at intermediate floor levels if the cavity tray steps up for structural or design reasons.
Beyond mere spacing, consider the following:
Slope: If your weep hole or vent is angled outward slightly, it encourages water to drain swiftly rather than pool in the channel.
Height Above Ground: Weeps near ground level should not be blocked by soil, mulch, or paving. Maintain clearance of at least 150 mm from external ground level.
Aesthetic Integration: In prominent façades, match the vent’s colour to the brick or mortar. Alternatively, opt for concealed weep designs to preserve a seamless look.
5. Integrating Weep Holes with DPC and Cavity Trays

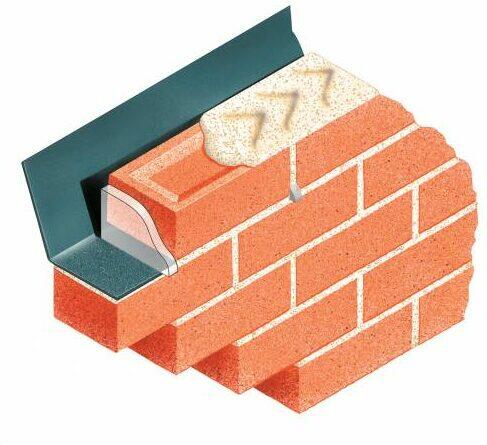

Weep holes do not act alone. They pair with cavity trays—sloped or stepped sheets placed in the cavity at key points—to direct water outward. Likewise, many typical details place weep holes just above a DPC course. Some best practices:
Alignment: The weep hole’s internal aperture should sit directly atop the cavity tray, ensuring a clear path for water. If the hole sits below or behind the tray, trapped water might never exit.
Overlap and Sealing: Where the cavity tray laps with the external masonry, confirm that no mortar droppings have sealed the gap. Also, ensure the tray is angled or stepped outward to encourage flow to the weep hole.
Avoiding Bridging: If insulation boards, mortar droppings, or debris block the tray or the approach to the weep hole, water may bypass or overflow. On-site cleanliness in the cavity is vital. Using cavity battens or boards while building up courses can help keep the tray and hole area free from blockages.
Compatibility: If you are installing a non-combustible DPC or require fire socks around the same level, check the manufacturer’s details on how or if the weep hole vent can pass through or around these materials without compromising performance.
By carefully coordinating these elements, you ensure that any water in the cavity takes the easiest route: straight out of the building via the weep hole.
6. Installation Best Practices
Although weep holes may appear straightforward, paying attention to detail ensures they function properly throughout the building’s life:
Plan Early: Identify every location where water could collect—above lintels, at the base DPC, around parapets—and mark these on the design drawings. Decide the weep hole type (open joint, plastic vent, etc.) in advance.
Protect During Construction: Before the mortar sets around a plastic vent, cover or shield the opening so excess mortar does not clog it. Some vents feature a removable cap or guard to prevent mortar ingress.
Maintain Consistent Spacing: Typically, place weeps every 450 mm along the cavity tray run if using multiple holes. For standard lintels, at least two are recommended at each end. Larger openings or wide trays might need more frequent weeps.
Slight Outward Pitch: If installing plastic vents, angle them slightly downward to the outside. That way, any moisture inside drains out quickly rather than pooling or backflowing.
Clear after Construction: Once the external leaf is finished, confirm each weep hole is free from blockages. A quick visual or gentle poke with a narrow rod can remove minor mortar crumbs.
Document and Communicate: If trades like external render or façade cladding teams come in later, ensure they know not to obscure or seal over the weep hole. Marking them on as-built drawings or using visible indicators can help.
7. Common Mistakes and How to Avoid Them
Weep hole installations can go wrong when overlooked or rushed. Key pitfalls include:
Failure to Include Enough Weeps
If you place only one weep hole above a wide lintel, water might accumulate at the opposite end. Spacing them evenly along the tray ensures consistent drainage.Clogged Vents
Mortar droppings, debris, or insect nests can block smaller openings. Using dedicated plastic vents with integral insect grilles and covering them during mortar work often reduces this risk.Missing or Misaligned Tray
Placing a weep hole but forgetting or misaligning the cavity tray below it can render the hole ineffective—water simply accumulates behind the tray or bypasses it in an uncontrolled way.Incorrect Height Above External Ground
If a weep hole near the bottom of the wall ends up below finished ground level, it becomes moot. Maintaining at least 150 mm clearance from final ground level is essential to prevent blockages from soil or planting.Overlooking Aesthetics
Especially in façades with high design value, randomly spaced or highly visible plastic vents can detract from the look. Use consistent spacing or concealed weep solutions where possible.Ignoring Fire Safety
In certain high-rise or multi-occupancy contexts, the chosen weep hole must not compromise Approved Document B requirements. This might mean specifying a non-combustible weep hole or verifying the overall façade system’s fire performance.
8. Special Considerations: Non-Combustible Weep Holes
Increasing concern over fire safety in external wall construction has led to the development of non-combustible weep holes, typically using metal or specially rated materials. These comply with guidelines in Approved Document B for buildings over a certain height or occupancy type, where external cavity components must be limited in combustibility. Key points:
Material: Often metal, such as stainless steel or aluminium, shaped to provide a discrete vent slot.
Thermal Bridge: Metal can conduct heat, so check if the design or location (like a spandrel barrier area) includes an insulation layer to mitigate bridging.
Integration: Ensure the product fits your specific cavity width and aligns with the manufacturer’s cavity tray details.
Certification: Look for any additional test data or approval for use in higher-risk builds. The manufacturer should confirm compliance with relevant fire safety standards.
While non-combustible weep holes may cost more than standard plastic vents, they can be essential for meeting stricter regulatory requirements and ensuring occupant safety in high-rise or sensitive developments.
9. Maintaining and Inspecting Weep Holes Over Time
Once installed, weep holes demand minimal maintenance, but small checks can go a long way:
Periodic Visual Inspections: Every year or so, especially after harsh weather, glance at the weep openings at ground level or above lintels. Confirm they remain clear of accumulated dirt or mortar spillage from any repairs.
Landscaping and Ground Level Changes: If external ground levels rise (e.g., after adding a patio or changing landscaping), the weep hole might become blocked. Keep at least
