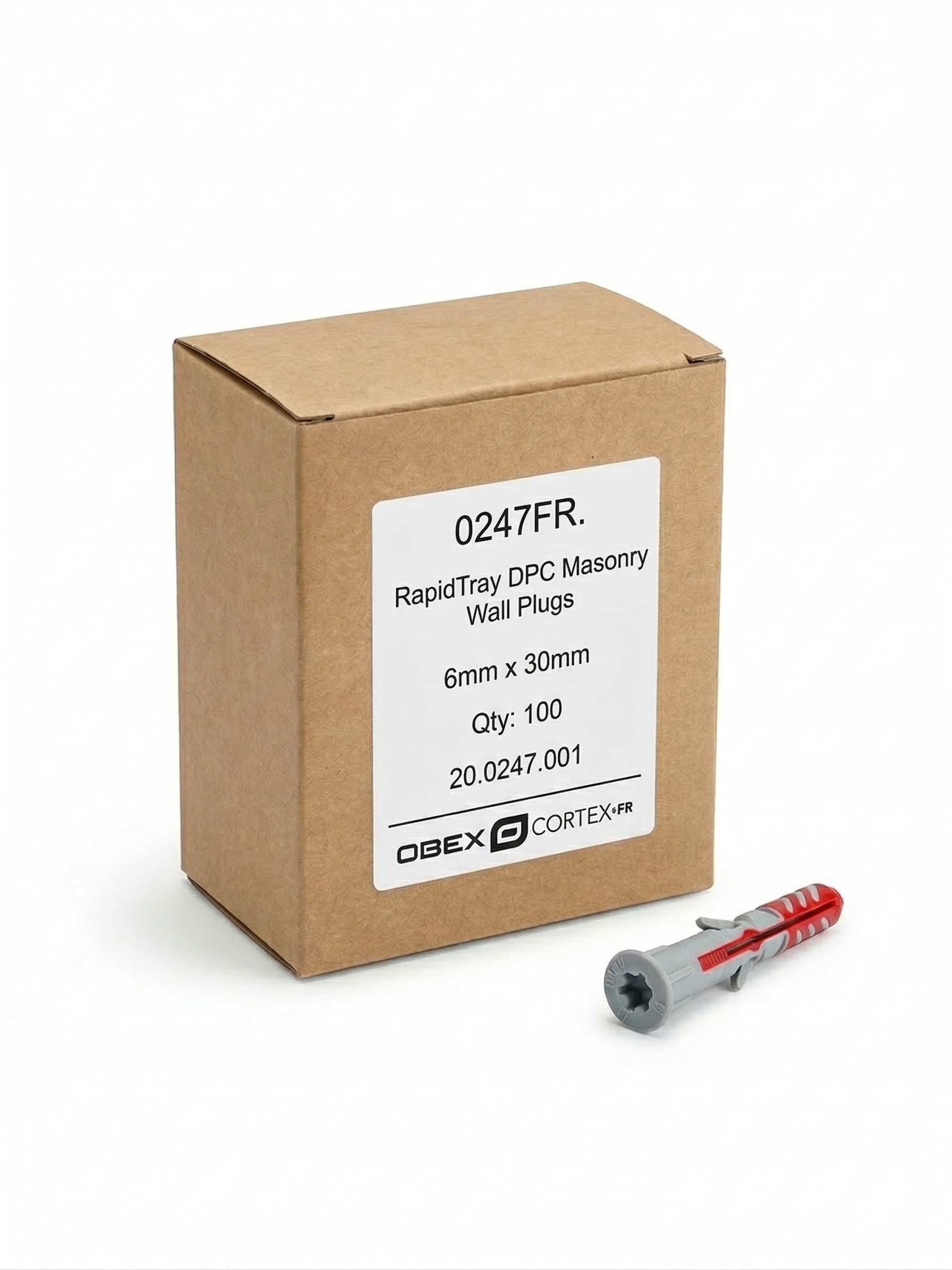

OBEX CORTEX 0247FR RapidTray DPC Masonry Wall Plugs 6mm x 30mm (Box of 100) by Obex Protection

The OBEX 0247FR RapidTray DPC Masonry Wall Plugs are purpose-designed fixings used for securing the RapidTray cavity tray and DPC system into masonry substrates. These plugs are specifically developed to be used with the OBEX 0246FR RapidTray fixing screws when installing the RapidTray 0240FR DPC membrane and the 0241FR cavity tray system.

Designed for use in concrete, blockwork and brick substrates, the 0247FR plug provides a secure anchor point for the RapidTray fixing screws. The universal plug design allows reliable performance across a range of common construction materials, helping ensure the RapidTray system is securely fixed during installation. :contentReference[oaicite:0]{index=0}

Key facts:

• RapidTray masonry fixing plugs for OBEX cavity tray and DPC systems
• Size: 6mm diameter x 30mm length
• Designed for use with OBEX 0246FR RapidTray fixing screws
• Suitable for fixing into concrete, blockwork and brick substrates
• Drill diameter: 6mm
• Minimum drill hole depth: 40mm
• Maximum load capacity up to 95kg in concrete
• Supplied in boxes of 100

Installation info:
Drill a 6mm diameter hole to a minimum depth of 40mm in the masonry substrate. Insert the 0247FR RapidTray wall plug into the drilled hole and position the RapidTray membrane or cavity tray system. Secure using the 0246FR RapidTray fixing screws, ensuring the fixing is tightened fully and installed in accordance with RapidTray installation guidelines.
