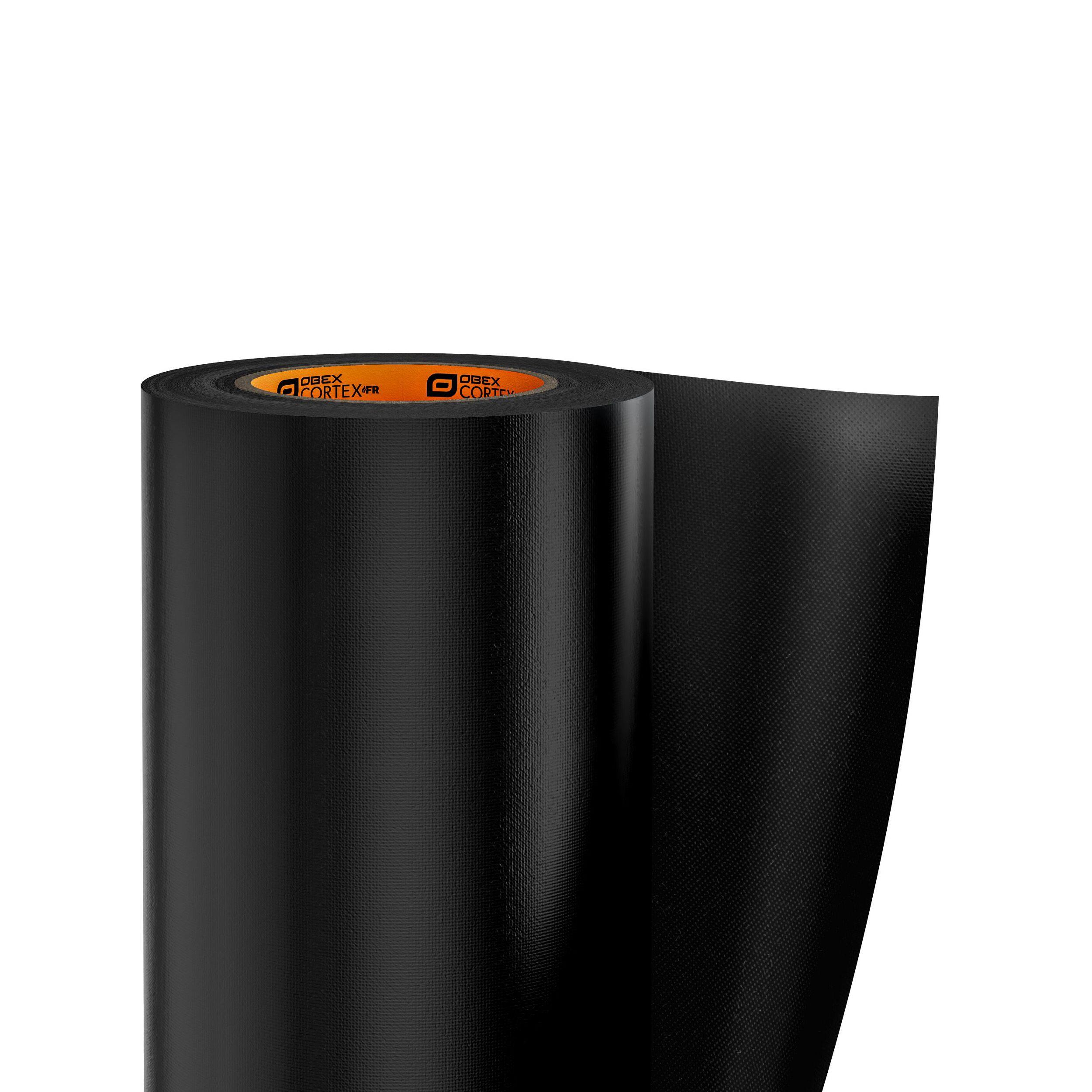

OBEX CORTEX 0500FR Interface Sealing Membrane - 950mm x 20m by Obex Protection

The OBEX CORTEX 0500FR is a fire-classified EPDM-alternative interface sealing membrane achieving a Class B-s3,d0 rating under EN 13501-1. Certified to BBA Certificate No. 17/5396, this 950mm × 20m roll creates reliable weather-tight and air-tight seals around window and door frames, curtain walling systems, SFS sections to concrete frames, parapet wall tops, and balcony details.

At 0.5mm thick, the 0500FR achieves a tensile strength of 2,490 N/50mm (MD) and 2,079 N/50mm (CD), with elongation at break of 28% (MD) and 31% (CD). The membrane passes watertightness testing at 2 kPa and 60 kPa for 24 hours (EN 1928), maintains air tightness of less than 0.1m³ net leakage (EN 12114), and delivers an Sd value of 12m. Cold flexibility is retained to −40°C, and the product carries a Passive House A+ rating.

Key facts:

• Fire classification: Class B-s3,d0 to EN 13501-1
• BBA Certified: Certificate No. 17/5396
• 0.5mm thickness – EPDM-alternative construction
• Roll size: 950mm × 20m
• Tensile strength: 2,490 N/50mm (MD) / 2,079 N/50mm (CD)
• Watertight at 2 kPa and 60 kPa for 24 hours (EN 1928)
• Air tightness: <0.1m³ net leakage (EN 12114)
• Sd value: 12m
• Cold flexibility: −40°C
• Passive House A+ rated
• Harmonised to EN 13984

Installation info:

Apply to clean, dry substrate using OBEX CORTEX 0771FR Paste Adhesive or OBEX CORTEX 0778FR Contact Adhesive. Overlap all joints by a minimum of 150mm and seal with OBEX CORTEX 0531FR Air & Vapour Tape.
