Vista VE2 General Purpose Wall Tie - 275mm Long - Bundle of 250 by Vista Engineering

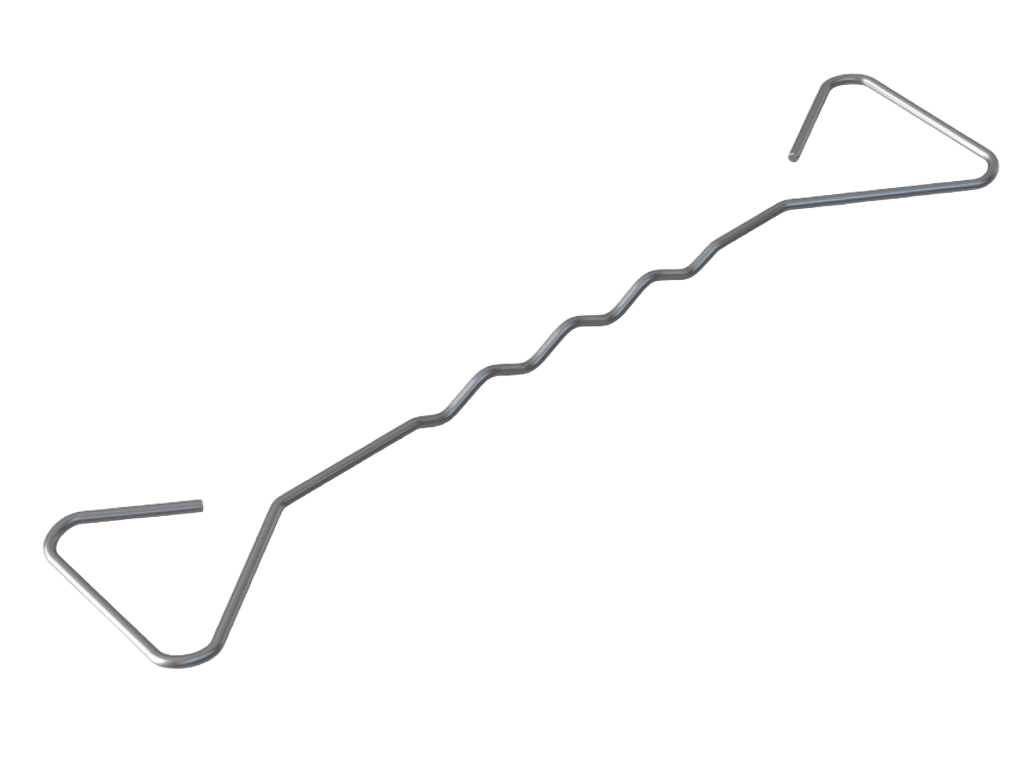

This Vista VE2 275mm general-purpose wall tie is designed for small commercial buildings and domestic dwellings up to 15m high. The 275mm length suits cavity widths of 126–150mm and provides a stable fixing between inner and outer masonry leaves for routine cavity wall construction. The stainless steel tie includes a multidrip feature to help reduce moisture transfer across the cavity and can be installed either way up for straightforward site use. The VE2 is BBA approved and tested as a Type 2 tie, making it suitable for flat sites with basic wind speeds up to 31m/s.

Key facts:

• 275mm Type 2 general-purpose wall tie
• Suits 126–150mm cavities
• Multidrip feature to limit moisture transfer
• Manufactured from grade 304 stainless steel
• BBA approved (Agrément Certificate 17/5462)
• This VE2 tie offers a reliable, corrosion-resistant fixing for standard brickwork and blockwork wall construction.

Installation info:

Bed each tie firmly into the mortar joint and position the multidrip centrally within the cavity. Install at the required spacing for the building type and cavity width. Keywords placed: Vista VE2 wall tie; VE2 general purpose wall tie; 275mm wall tie; Type 2 wall tie; 126–150mm cavity wall tie; multidrip wall tie; stainless steel wall tie; BBA approved wall tie. --
