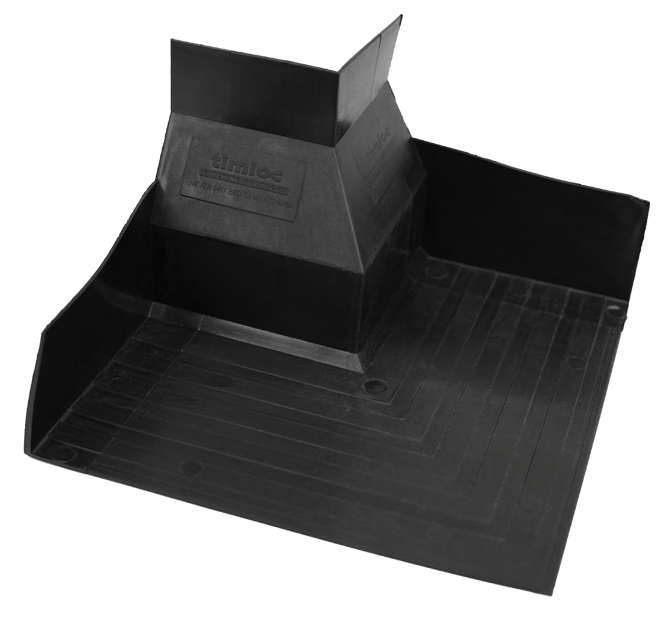

Timloc Everdry Cavity Tray for Brickwork - Corner Starter by Timloc Building Products

The Timloc Everdry Corner Starter Tray for Brickwork is a preformed damp-proof course (DPC) designed for roof abutments that extend to or beyond the corner of a building, providing a watertight return and preventing moisture ingress at the junction.

Designed for external walls up to 120mm thick and cavity widths between 50mm and 110mm, it forms part of the Timloc Everdry Adjustable Stepped Cavity Tray system. The corner starter tray integrates with intermediate and catchment trays to create a complete DPC system for pitched roofs of 15° or more.

Key facts:

• Provides damp-proof protection at roof corners
• Designed for abutments extending to or beyond the corner
• For 50–110mm cavities
• Compatible with Timloc Everdry tray components
• Meets BBA and NHBC standards

This Timloc Everdry Corner Starter Tray ensures reliable, long-term protection against water ingress, maintaining structural integrity and compliance with damp-proofing standards.

Installation info:

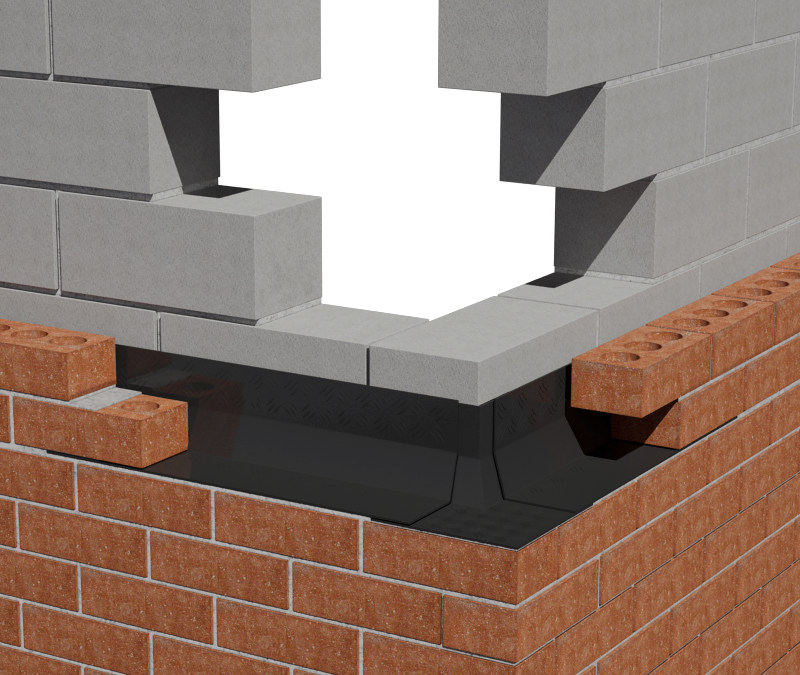

Install at the roof abutment corner, ensuring a watertight connection with adjoining trays. Maintain continuous overlap and include weep holes for proper discharge.
