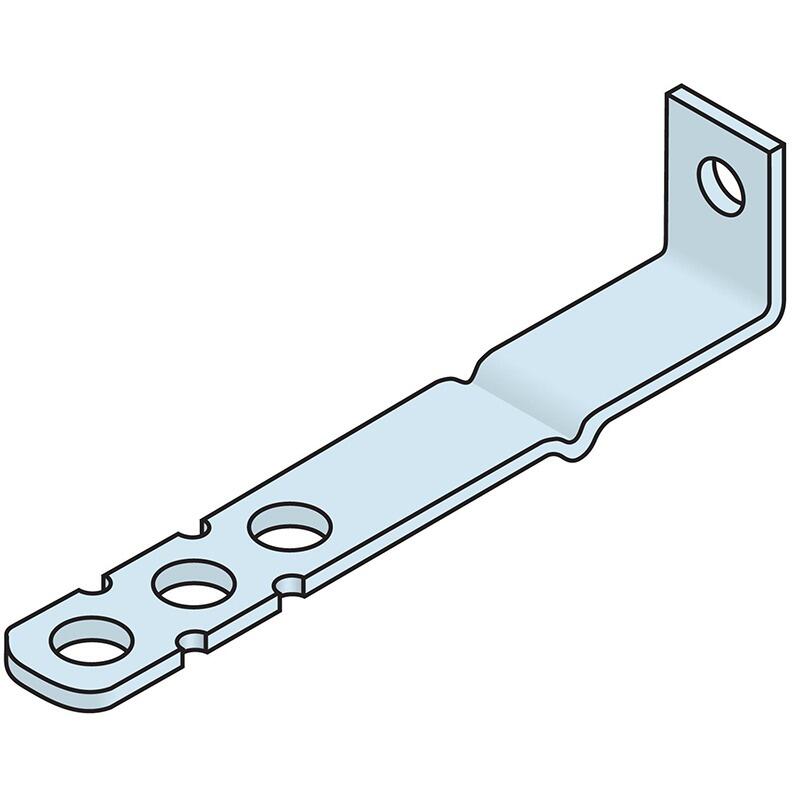

Ancon SDB 150mm Frame Tie With Drip - Box of 250 by Ancon - A Leviat Brand

The Ancon SDB 150mm Frame Tie with Drip is specifically engineered for providing reliable lateral restraint between masonry and structural elements such as concrete or steel frames. The integrated drip feature prevents water from bridging the cavity, ensuring moisture protection and long-term structural integrity. With a 150mm length, this tie is suitable for cavity widths of 70-95mm, making it ideal for residential, commercial, and industrial construction projects.

Manufactured from high-quality stainless steel, the SDB Frame Tie is resistant to corrosion and ensures a long-lasting, durable performance. It features a 7mm diameter hole, compatible with M6 expansion bolts for concrete and self-drilling screws for steel frames. Each box contains 250 ties, providing an ample supply for extensive construction needs.

Installation Instructions:

• Ensure the drip faces downwards and is positioned centrally within the cavity to prevent water ingress.
• Maintain the outer leaf one course below the tie installation to avoid mortar contamination.
• Embed the tie a minimum of 55mm into the outer leaf for optimal stability.

Compliance & Certifications:

This frame tie complies with BS EN 845-1 standards and is UKCA and CE marked, ensuring it meets all relevant building regulations for cavity wall ties. It is suitable for various applications in both residential and commercial settings, providing reliable performance in cavity wall construction.
