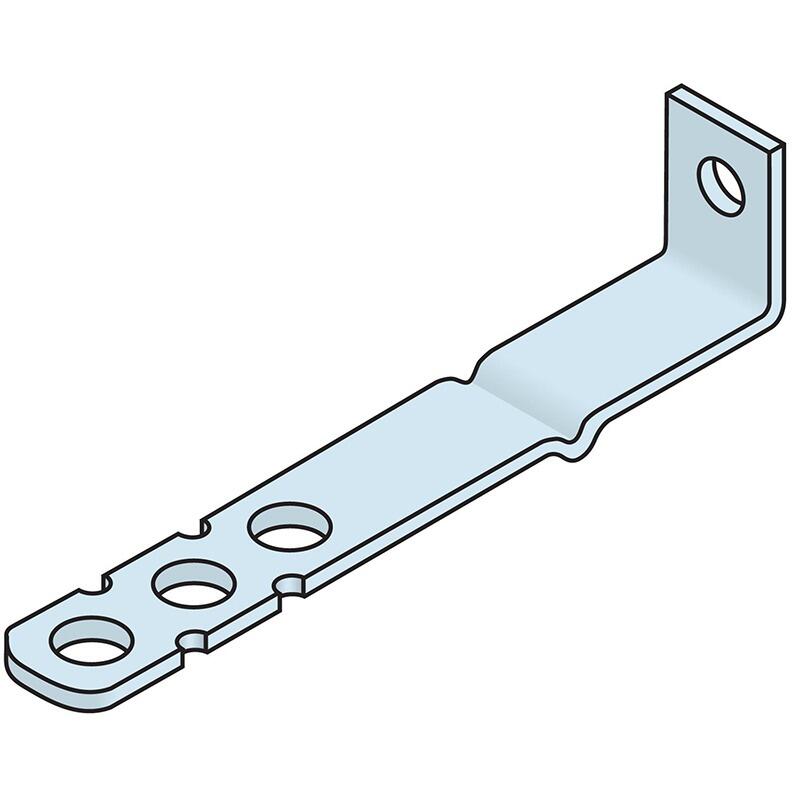

Ancon SDB 275mm Frame Tie With Drip - Box of 125 by Ancon - A Leviat Brand

The Ancon SDB 275mm Frame Tie With Drip offers dependable lateral restraint between masonry and structural frames such as concrete or steel. Designed for cavity widths of 220–245mm, it features an integral drip to prevent moisture bridging across the cavity and reaching inner walls.

Each 275mm tie is manufactured from corrosion-resistant stainless steel and includes a 7mm hole for use with M6 expansion bolts or self-drilling screws. Supplied in boxes of 125, they meet BS EN 845-1 standards for cavity wall restraint and are suitable for residential or commercial use.

Key facts:

• 275mm stainless steel tie with integral drip

• Designed for 220–245mm cavity widths

• 7mm hole for M6 bolts or self-drilling screws

• Complies with BS EN 845-1 standard

• Box contains 125 ties

The Ancon SDB 275mm Frame Tie With Drip is ideal for deep-cavity walls requiring both secure fixing and moisture control.

Installation info:

Install with the drip facing downward and centred in the cavity. Embed the tie at least 55mm into the outer leaf, one course below the working level to avoid mortar contamination.
